AVENTICS 0822332207 Roundline Cylinder - , 16mm Bore, 160mm Stroke, MNI Series, Double Acting

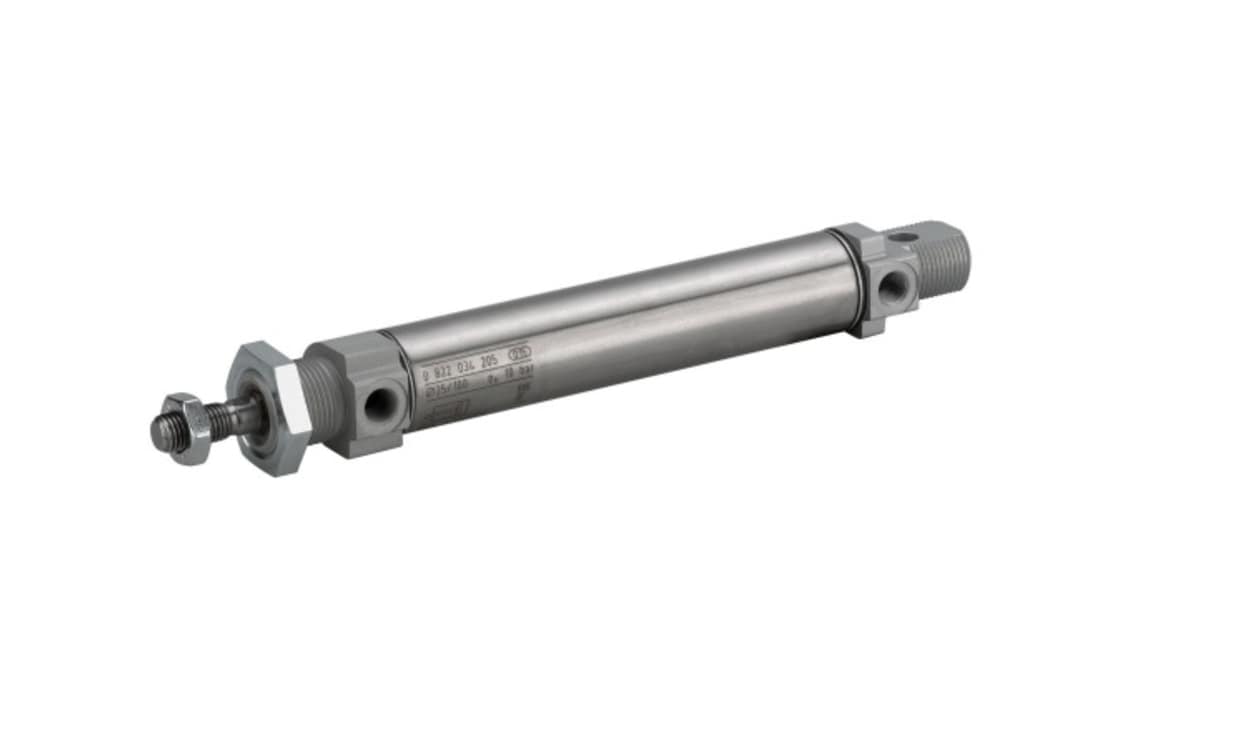

Name: AVENTICS 0822332207 Roundline Cylinder - , 16mm Bore, 160mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822332207
Availability: OutOfStock

Part Number : 0822332207

Availability: Sold out

Detailed Description
Specifications

The Aventics Series MNI Mini cylinders (ISO 6432) redefine efficiency in general machine construction. This compact yet robust solution is designed for superior durability and extended service life, tackling the toughest industrial applications with ease. Featuring a flexible stroke length of up to 800 mm, this double-acting cylinder is ideal for various configurations, providing a reliable performance across diverse environments. The incorporation of elastic cushioning and magnetic piston technology enhances functionality, ensuring smooth operation while meeting industry standards. With options for ATEX compliance, this cylinder is suitable for use in hazardous settings, thereby offering versatility without compromising safety. The MNI Series is engineered for precision, making it an invaluable component in enhancing the efficiency of automated systems.

Robust construction for long-lasting performance
Double-acting design ensures reliable operation
Elastic cushioning contributes to smoother functionality
Magnetic piston enhances responsiveness and control
Wide operating temperature range accommodates varied environments
ATEX-certified options ensure safety in hazardous locations
Compact size facilitates easy integration into existing systems
Customised configurations available through the internet configurator

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822332207
Stroke	160mm
Action	Double
Bore	16mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
