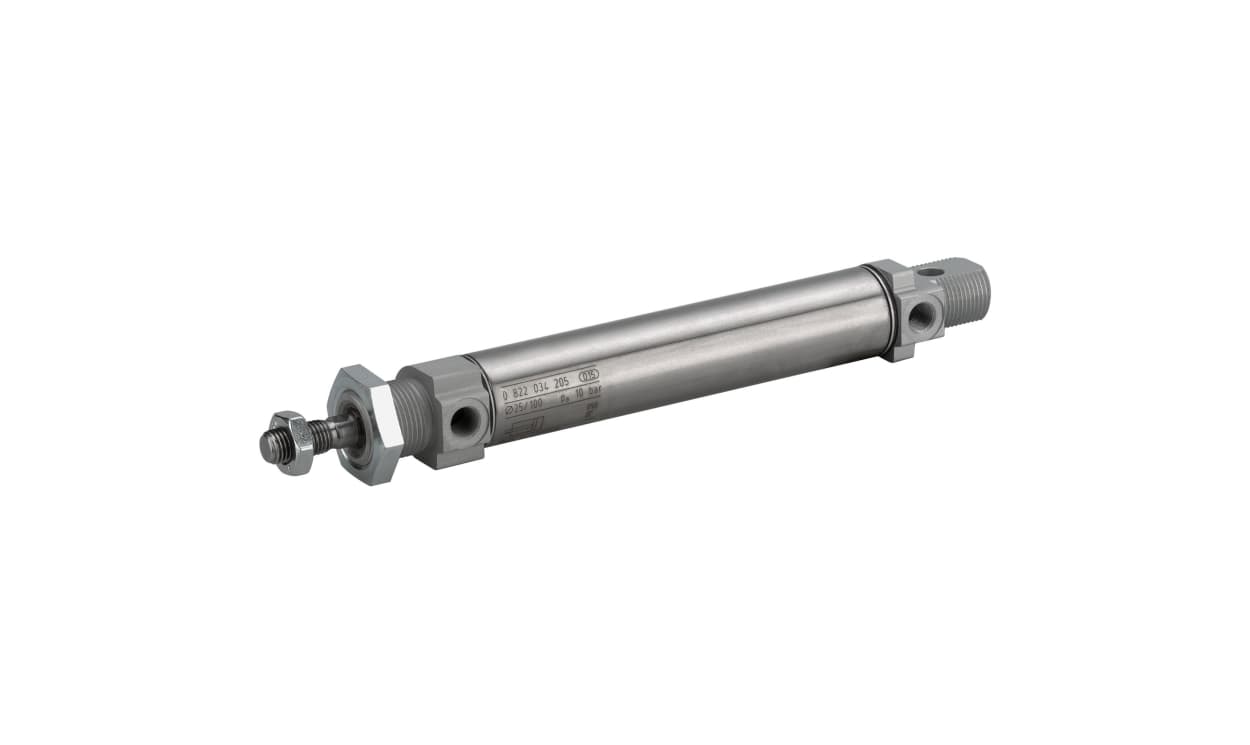

AVENTICS 0822234005 Pneumatic Cylinder - , 25mm Bore, 100mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822234005 Pneumatic Cylinder - , 25mm Bore, 100mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822234005
Availability: OutOfStock

Part Number : 0822234005

Availability: Sold out

Detailed Description
Specifications

The Aventics MNI round cylinders for general machine construction are characterized by its robust and long service life. The pressure dew point must be at least 15 °C less than ambient and medium temperature and may not exceed 3 °C. Its configurations available as single/through piston rod, elastic/adjusted cushioning, with/ without magnetic detection, non-rotating piston rod, ATEX.

Robust and space saving design
Characterized by extreme durability and a long service life
Offers piston diameters from 10 mm to 25 mm

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822234005
Action	Double
Bore	25mm
Stroke	100mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Dimensions	119.5 x 30mm
Diameter	30mm
Length	119.5mm
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
VDMA Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
