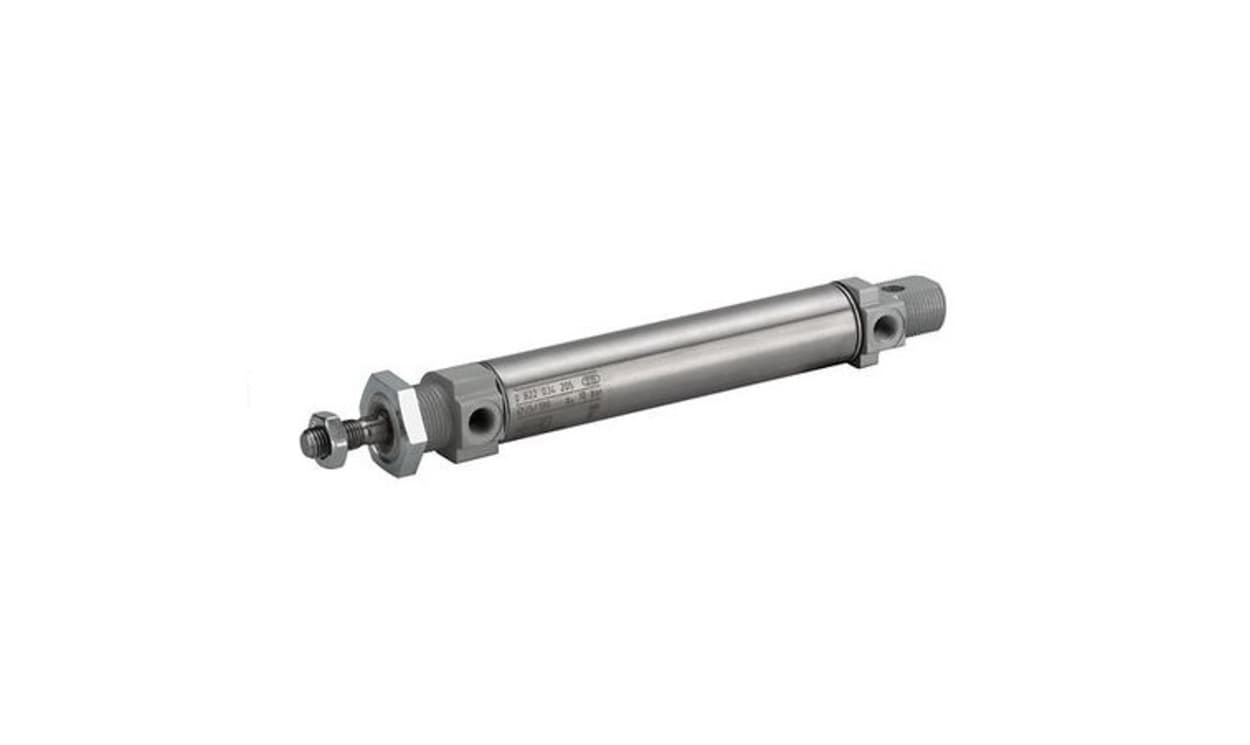

AVENTICS 0822033202 Pneumatic Cylinder - , 20mm Bore, 25mm Stroke, MNI Series, Double Acting

Name: AVENTICS 0822033202 Pneumatic Cylinder - , 20mm Bore, 25mm Stroke, MNI Series, Double Acting
Brand: Aventics
SKU: 0822033202
Availability: OutOfStock

Part Number : 0822033202

Availability: Sold out

Detailed Description
Specifications

The Aventics MNI round cylinders for general machine construction are characterized by its robust and long service life. The pressure dew point must be at least 15 °C less than ambient and medium temperature and may not exceed 3 °C. Its configurations available as single/through piston rod, elastic/adjusted cushioning, with/ without magnetic detection, non-rotating piston rod, ATEX.

Robust and space saving design
Characterized by extreme durability and a long service life
Offers piston diameters from 10 mm to 25 mm

Brand	AVENTICS
Manufacturer Series	MNI
Model Number p	0822033202
Stroke	25mm
Action	Double
Bore	20mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Dimensions	109.5 x 30mm
Diameter	30mm
Length	109.5mm
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
VDMA Standard	ISO 6432
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
