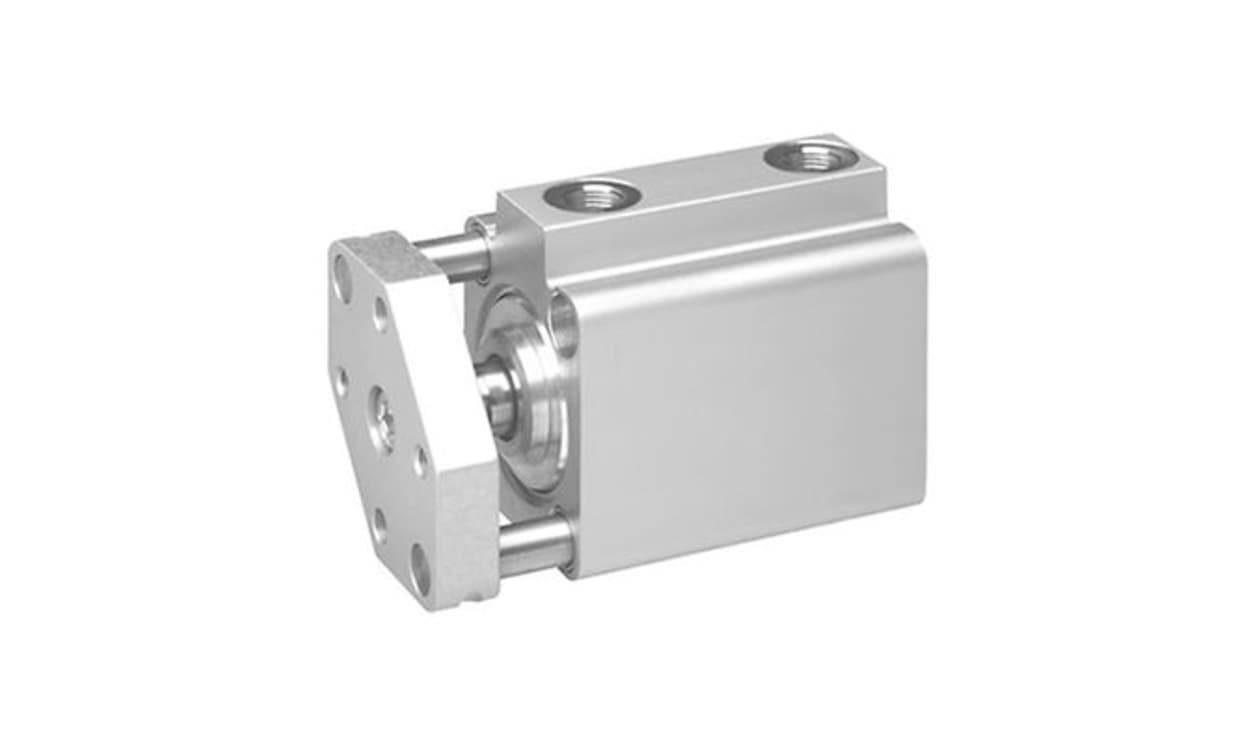

AVENTICS 0822010766 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 50 mm Bore, 40 mm Stroke, G 1/8

Name: AVENTICS 0822010766 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 50 mm Bore, 40 mm Stroke, G 1/8
Brand: Aventics
SKU: 0822010766
Availability: OutOfStock

Part Number : 0822010766

Part number 0822010766 from AVENTICS pairs a 40 mm stroke with a 50 mm bore in the double-acting KHZ series, taking a G 1/8 pneumatic connection and specified for operating temperatures between -25 °C and +80 °C.

Bore 50 mm, stroke 40 mm
Double-acting operation, KHZ series
Port connection: G 1/8
Female piston rod thread
Elastic cushioning
Maximum operating pressure 10 bar

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics short-stroke cylinder from aventics is designed for applications where space is at a premium yet performance cannot be compromised. The Series KHZ offers an innovative solution that seamlessly integrates into machinery requiring compact, high-efficiency actuators. With a robust double-acting functional principle, this cylinder ensures reliable operation in various industrial environments. Its elastic cushioning enhances durability and safety, making it suitable for sensitive tasks. The cylinder is crafted from high-quality materials, ensuring longevity and reliability, even under challenging conditions. Achieving maximum performance with minimal ambient and medium temperature fluctuations, this product is highly adaptable, meeting the demands of modern automation and industrial applications.

Optimised for tight installation spaces, enhancing operational flexibility
Double-acting operation ensures consistent force in both directions
Elastic cushioning contributes to a quieter and smoother performance
Constructed with durable materials for improved outlook in harsh environments
Magnetic piston-free design allows for reduced complexity
Standard industry scraper provides enhanced resistance against contaminants
Wide temperature range suitability ensures dependable performance across various conditions
Designed for easy integration with existing machinery, minimizing downtime

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010766
Bore	50mm
Action	Double
Stroke	40mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Stroke Interval Weight	0.086 @ 10 mm kg/mm
Test Weight	0.388 kg

AVENTICS 0822010766 | KHZ Double-Acting Pneumatic Piston Rod Cylinder | 50 mm Bore, 40 mm Stroke, G 1/8

DOWNLOAD CATALOG

0822010766 Datasheet - 0822010766 A700000012571767
