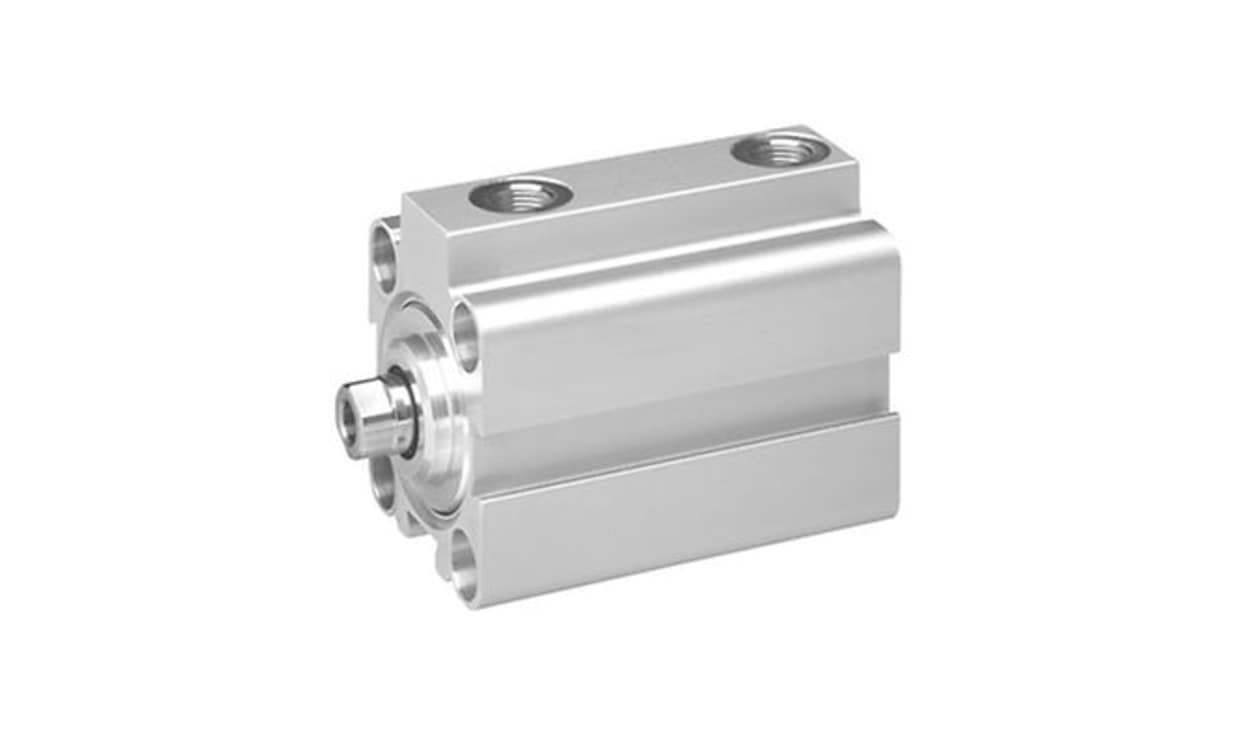

AVENTICS 0822010667 Pneumatic Piston Rod Cylinder - , 50mm Bore, 50mm Stroke, KHZ Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 0822010667 Pneumatic Piston Rod Cylinder - , 50mm Bore, 50mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010667 Pneumatic Piston Rod Cylinder - , 50mm Bore, 50mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010667
Availability: OutOfStock

Part Number : 0822010667

Availability: Sold out

Detailed Description
Specifications

The Aventics Short-stroke Cylinder, Series KHZ, is expertly designed for applications requiring compact solutions within restricted spaces. This non-standard short-stroke cylinder delivers exceptional performance, ensuring seamless integration into machinery while maintaining a high level of safety and reliability. Engineered with a combination of innovative materials and advanced cushioning technology, this product promises durability and efficiency. With its double-acting functionality, it caters to diverse industrial needs by providing consistent and powerful operation in various environments. These cylinders not only enhance functionality but are also tailored to meet stringent industrial requirements, making them an indispensable part of modern automation systems. Whether it's industry-standard guidelines or specific operational needs, the Series KHZ is a top choice for those seeking reliability and precision.

Ideal for tight installation spaces, enhancing operational flexibility
Double-acting principle ensures efficient power delivery
Elastic cushioning contributes to smooth and controlled movement
Magnetic piston promotes reliable positioning and sensor compatibility
Constructed from premium materials for enhanced longevity and robustness
Environmentally suitable for a wide range of temperatures
Designed with a standard industry scraper for protecting internal components
Compact dimensions aid in simplifying system designs and bolstering efficiency

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010667
Bore	50mm
Stroke	50mm
Action	Double
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.074 @ 10 mm kg/mm
Maximum Operating Temperature	+80°C
Test Weight	0.388 kg
