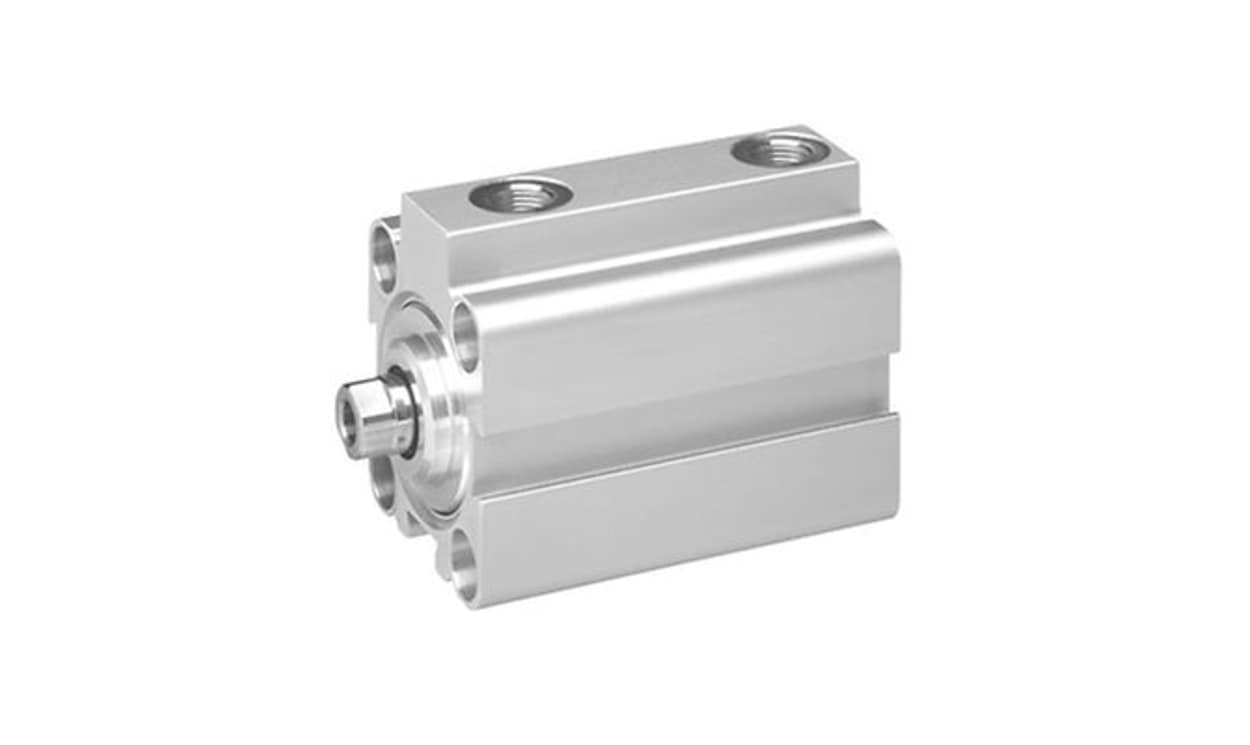

AVENTICS 0822010621 Pneumatic Piston Rod Cylinder - , 20mm Bore, 10mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010621 Pneumatic Piston Rod Cylinder - , 20mm Bore, 10mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010621
Availability: OutOfStock

Part Number : 0822010621

Availability: Sold out

Detailed Description
Specifications

The Aventics short-stroke cylinder from the series KHZ is designed to excel in environments where space is at a premium. Ideal for a variety of industrial applications, this non-standard cylinder provides seamless integration in machinery, ensuring efficient operation without compromising on safety. With a robust construction featuring aluminium and stainless steel components, it guarantees durability whilst maintaining its lightweight nature. The KHZ series boasts double-acting functionality and elastic cushioning, which enhances performance while minimising wear. Offering a wide operating temperature range and compatible with compressed air, this cylinder is an excellent choice for both standard and demanding conditions.

Compact design enhances adaptability in tight spaces
Double-acting operation maximises efficiency and responsiveness
Elastic cushioning ensures smooth operation and increased longevity
Robust materials provide durability and resistance to wear
Wide temperature tolerance suits various environmental needs
Standardised M5 ports simplify installation and maintenance
Magnetic piston improves positioning accuracy and response times

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010621
Action	Double
Stroke	10mm
Bore	20mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
