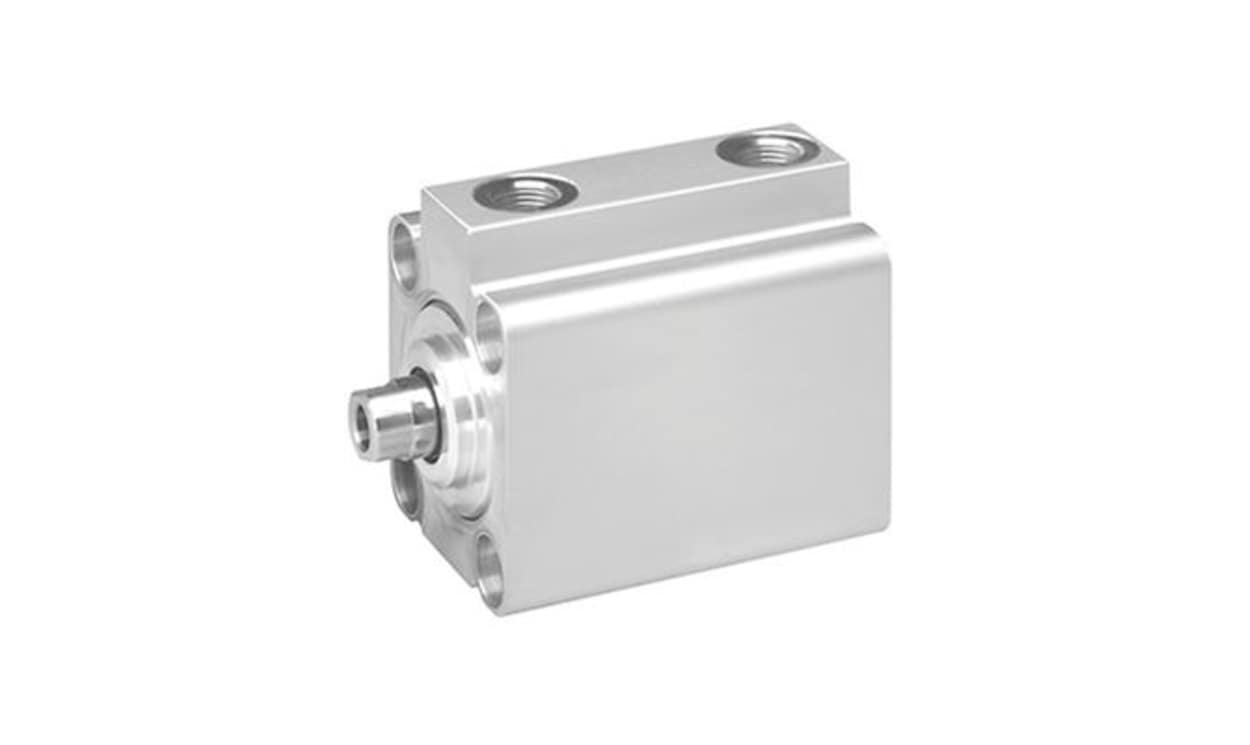

AVENTICS 0822010563 | Pneumatic Piston Rod Cylinder | 50 mm Bore, 20 mm Stroke, KHZ

Name: AVENTICS 0822010563 | Pneumatic Piston Rod Cylinder | 50 mm Bore, 20 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010563
Availability: OutOfStock

Part Number : 0822010563

For applications needing 20 mm of travel, the AVENTICS 0822010563 KHZ piston rod cylinder offers a 50 mm bore, double action and G 1/8 ports, plus a female piston rod thread.

Bore: 50 mm
Stroke: 20 mm
Port connection: G 1/8
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics Short Stroke Cylinder, part of the series KHZ, is expertly designed to excel in tight installation spaces without compromising performance. Built from high-quality materials, its robust construction ensures durability while maintaining exceptional functionality. The cylinder operates on a double-acting functional principle, providing reliable and consistent power in various industrial applications. Ideal for automation and machinery integration, this model blends seamlessly into systems requiring precision engineering.

Stainless steel piston rod promotes corrosion resistance and longevity
Nitrile rubber piston material supports effective sealing and longevity
Scraper material made of polyurethane optimises debris management
Aluminium cylinder tube provide a lightweight yet robust structure
Compatible with compressed air mediums making it versatile for numerous applications

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	82 201 0563
Bore	50mm
Stroke	20mm
Action	Double
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.074 @ 10 mm kg/mm
Test Weight	0.388 kg
Maximum Operating Temperature	+80°C

AVENTICS 0822010563 | Pneumatic Piston Rod Cylinder | 50 mm Bore, 20 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010563 Datasheet - 0822010563 A700000012572099
