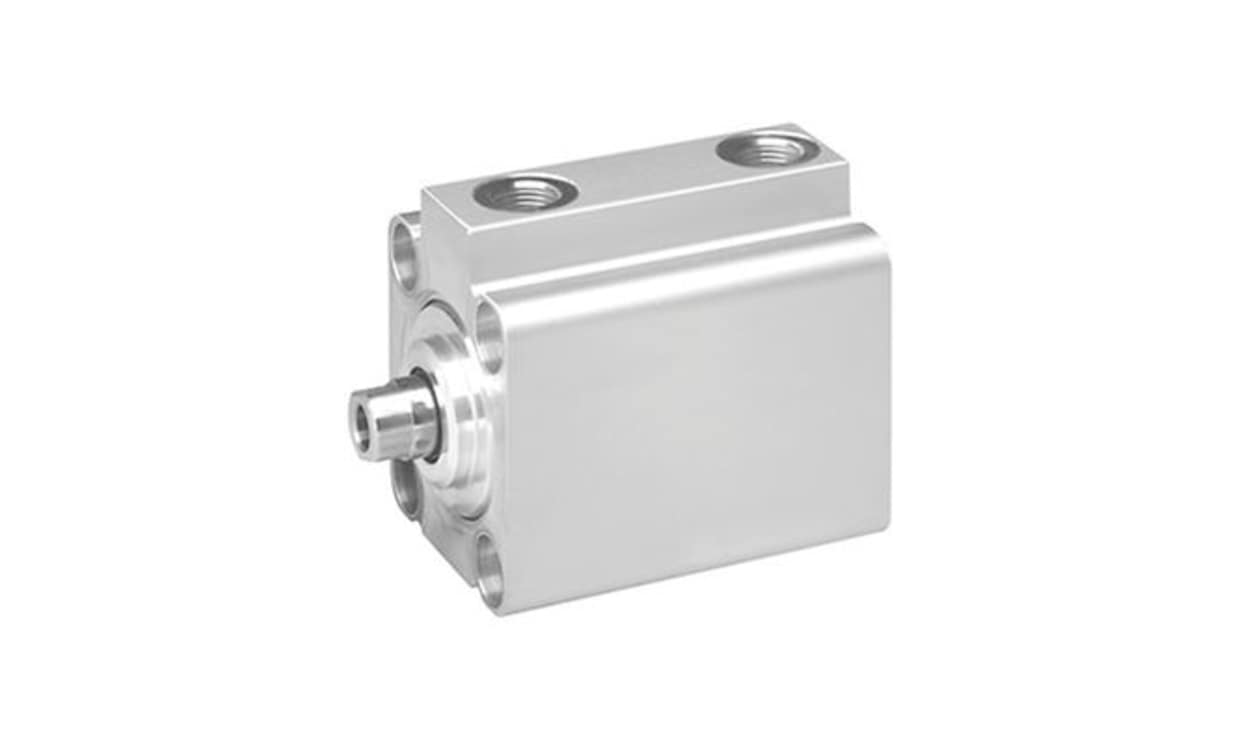

AVENTICS 0822010520 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 5 mm Stroke, KHZ

Name: AVENTICS 0822010520 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 5 mm Stroke, KHZ
Brand: Aventics
SKU: 0822010520
Availability: OutOfStock

Part Number : 0822010520

This AVENTICS 0822010520 KHZ cylinder combines a 5 mm stroke with a 20 mm bore and works double acting from an M5 port connection, with a female piston rod thread.

Bore: 20 mm
Stroke: 5 mm
Port connection: M5
Piston rod thread: female
Action: double acting, elastic cushioning
Maximum operating pressure 10 bar; -25 to +80 °C

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics non-standard short-stroke cylinder is expertly designed to excel in compact installation environments, providing seamless integration into machinery. Crafted for efficiency, the model KHZ stands out with its reliable double-acting functional principle. Its innovative elastic cushioning mechanism enhances operational safety and longevity. With extensive compatibility in industrial applications, the series KHZ ensures high performance under varying conditions, while its robust construction and quality materials guarantee durability. Featuring a piston diameter of 20 mm and a minimal stroke of 5 mm, it caters to a diverse range of pneumatic requirements. Moreover, the effective environmental standards align with industry expectations, making it an ideal choice for professionals seeking a trustworthy cylinder that maximises productivity without compromising on space.

Designed for tight spaces, ensuring versatile applications
Double-acting functional principle for efficient motion control
Elastic cushioning provides enhanced protection and comfort during operation
Built to withstand high pressures, promoting reliability
Material composition includes stainless steel and aluminium for durability
Optimised for consistent performance with compressed air
Meets stringent environmental standards ensuring longevity
Maintains operational efficiency even in extreme temperatures

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010520
Stroke	5mm
Bore	20mm
Action	Double
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Test Weight	0.082 kg
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.021 @ 10 mm kg/mm

AVENTICS 0822010520 | Pneumatic Piston Rod Cylinder | 20 mm Bore, 5 mm Stroke, KHZ

DOWNLOAD CATALOG

0822010520 Datasheet - 0822010520 A700000012571483
