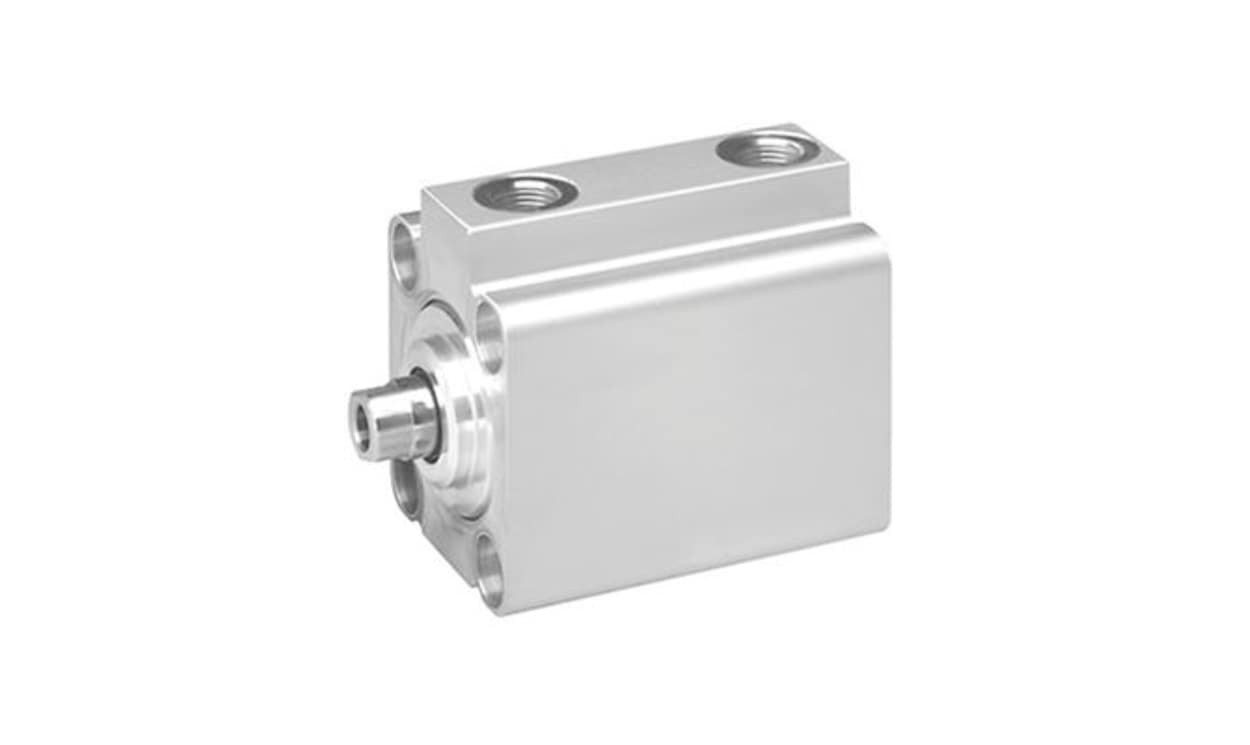

AVENTICS 0822010515 Pneumatic Piston Rod Cylinder - , 16mm Bore, 30mm Stroke, KHZ Series, Double Acting

Name: AVENTICS 0822010515 Pneumatic Piston Rod Cylinder - , 16mm Bore, 30mm Stroke, KHZ Series, Double Acting
Brand: Aventics
SKU: 0822010515
Availability: OutOfStock

Part Number : 0822010515

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics Series KHZ short-stroke cylinder is designed for applications where space is restricted, providing efficient movement without compromising on performance. This innovative cylinder integrates seamlessly into machinery, making it a perfect choice for diverse industrial environments. Engineered with a double-acting functional principle, the Series KHZ offers reliable operation backed by robust environmental standards. Its lightweight yet sturdy construction ensures durability, while the elastic cushioning contributes to a smooth and controlled actuation. With an extensive temperature range and pressure capabilities, this cylinder stands ready to meet the demanding needs of modern automation projects.

Suitable for tight installation spaces and complex machinery
Double-acting design enhances efficiency during operation
Constructed from high-quality materials for increased longevity
Elastic cushioning minimizes impact and wear during operation
Wide temperature range allows for effective use in various environments
Compatible with standard compressed air systems for easy integration

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822010515
Stroke	30mm
Action	Double
Bore	16mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Test Weight	0.063 kg
Minimum Operating Temperature	-25°C
Stroke Interval Weight	0.016 @ 10 mm kg/mm

AVENTICS 0822010515 Pneumatic Piston Rod Cylinder - , 16mm Bore, 30mm Stroke, KHZ Series, Double Acting

DOWNLOAD CATALOG

0822010515 Datasheet - 0822010515 A700000012571443
