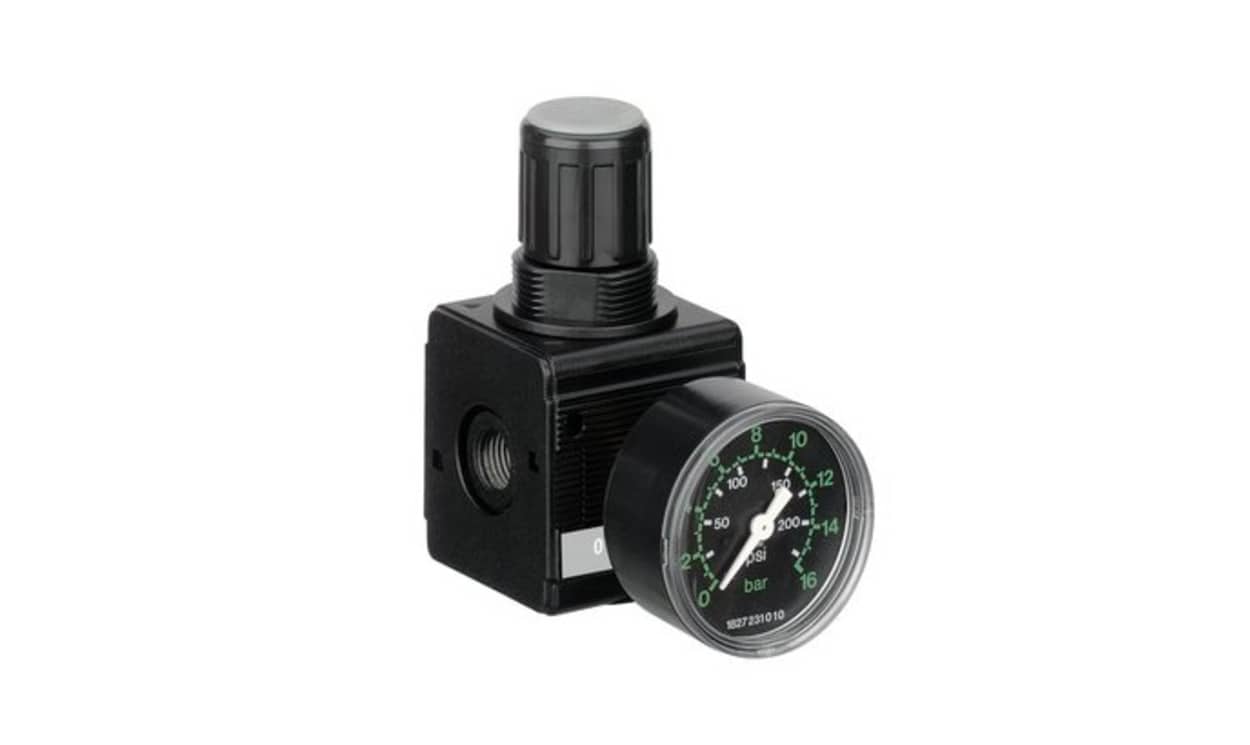

AVENTICS 0821302400 G 1/4 Pneumatic Regulator - 0.5bar to 10bar, 1/4in, 16bar max. input
Part Number : 0821302400
For pricing, please contact our experts.
- Detailed Description
- Specifications
- Downloads
NL Series Regulator plus Gauge
Diaphragm type pressure regulator with relieving air exhaust
Temperature range -10 → +60 °C
ATEX Certified II 2G2D X
Temperature range -10 → +60 °C
ATEX Certified II 2G2D X
NL Series FRL
The NL range of air preparation units may be used as single elements or in combination units using joining accessories
| Brand | AVENTICS |
| Port Connection | G 1/4 |
| Maximum Outlet Pressure | 10bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 16bar |
| Manufacturer Series | NL2-RGS |
| Pressure Gauge Port Size | G 1/4 |
| Port Connection Thread Size | 1/4in |
| Pressure Gauge Port Thread Size | 1/4in |
| Maximum Flow Rate | 1500L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Pressure Gauge Port Thread Standard | G |
AVENTICS 0821302400 G 1/4 Pneumatic Regulator - 0.5bar to 10bar, 1/4in, 16bar max. input
