AVENTICS 0821200204 CC02-AL Series Threaded Flow Valve, G 1/8 Inlet Port x G 1/8 Outlet Port

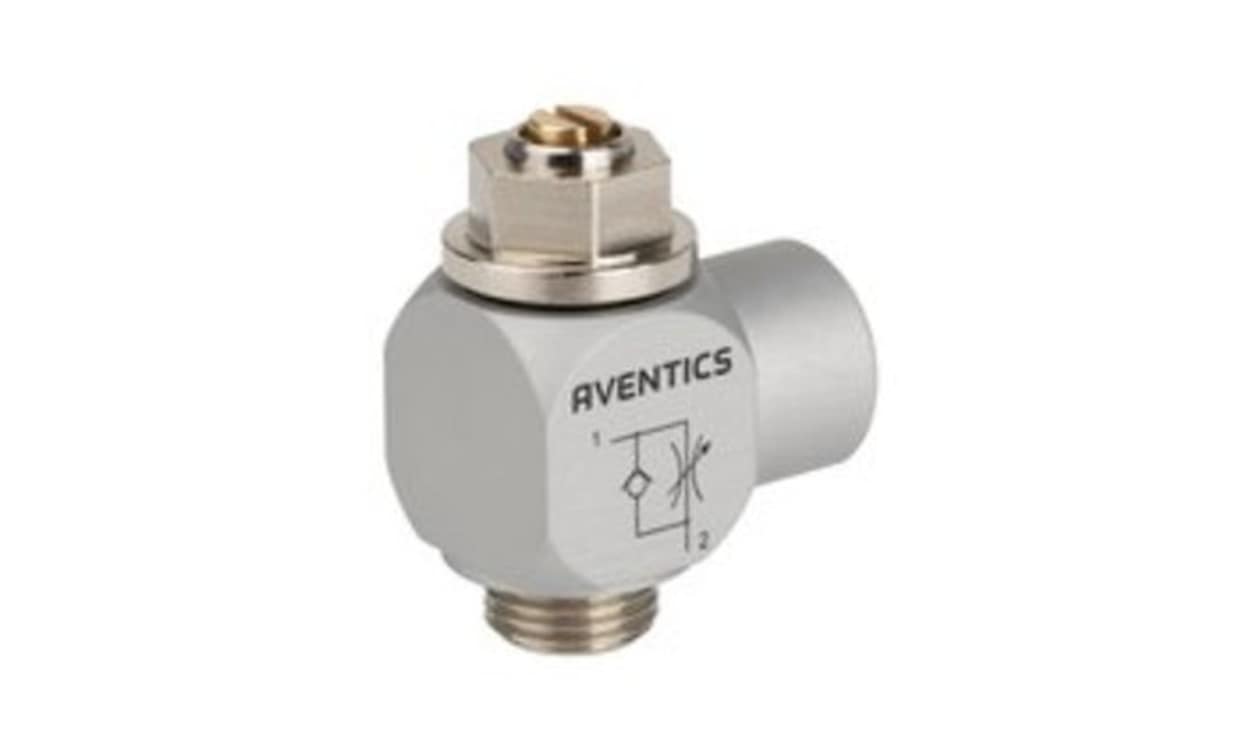

Name: AVENTICS 0821200204 CC02-AL Series Threaded Flow Valve, G 1/8 Inlet Port x G 1/8 Outlet Port
Brand: Aventics
SKU: 0821200204
Availability: OutOfStock

Part Number : 0821200204

Availability: Sold out

Detailed Description
Specifications
Downloads

The Aventics Throttle Check Valve is a compact and lightweight solution designed for precise control of compressed air flow in industrial applications. It is available with internal and external thread.

Exhaust Air Throttling
Throttle bore diameter is 3.5 mm
Port diameters are G 1 by 8
Nominal flow is 363 l per min

Brand	AVENTICS
Type	Valve
Inlet Port Type	Threaded
Threaded Inlet Port	G 1/8
Manufacturer Series	CC02-AL
Threaded Outlet Port	G 1/8
Model Number p	0821200204

AVENTICS 0821200204 CC02-AL Series Threaded Flow Valve, G 1/8 Inlet Port x G 1/8 Outlet Port

DOWNLOAD CATALOG

0821200204 Datasheet - 0821200204 A700000012800216

0821200204 Datasheet - 0821200204 A700000012800747
