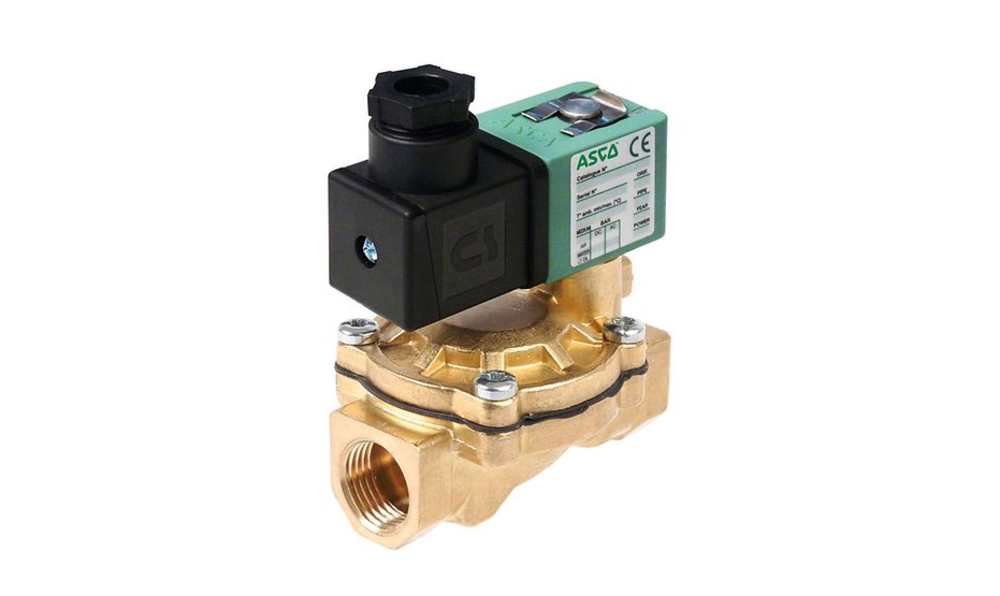

ASCO SCXE238D002.230/50-60.17777, Solenoid Valve , 2 port(s) , NC, 230 V, 1/4in

Name: ASCO SCXE238D002.230/50-60.17777, Solenoid Valve , 2 port(s) , NC, 230 V, 1/4in
Brand: Asco
SKU: SCXE238D002.230/50-60.17777
Availability: OutOfStock

Part Number : SCXE238D002.230/50-60.17777

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is expertly designed for efficient control of water, air, and various inert gases, making it an essential component for automated systems. This two-way, normally closed valve boasts a built-in pilot and floating diaphragm, enhancing reliability under varying operational pressures. With an ambient temperature tolerance of -10°C to +60°C, it caters to diverse environments. Its robust construction features high-quality brass and stainless steel components to ensure durability over time. Additionally, this unit adheres to all pertinent European directives, providing peace of mind regarding compliance and safety standards in various applications.

Minimum operating pressure differential promotes energy efficiency
Interchangeable magnetic heads allow for versatile applications
Key components are made from corrosion-resistant materials for longevity
IP65 rated electrical enclosure ensures protection against dust and water
Multiple voltage options cater to a wide range of system requirements
Easy installation with standardised pipe connections simplifies setup
Quick response times contribute to effective and timely control
Compatibility with various fluids expands operational flexibility

Brand	Asco
Supply Voltage	230 V
Number of Ports	2
Connection Size	1/4in
Connection	G 1/4
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	12mm
Series	238
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Minimum Operating Temperature	-10°C
Thread Standard or Connection Type	G
Maximum Operating Temperature	+60°C
Flow Factor Kv	40L/min
