Part Number : SCE374A017MS VD

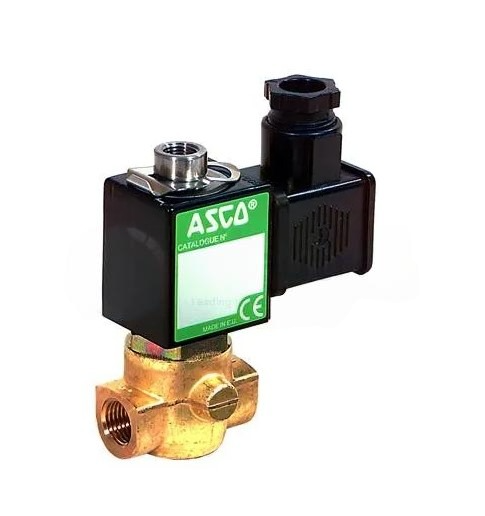

Compact in design, ASCO series 374 direct driven solenoid valves are designed for single acting actuator control. There are two maximum pressure ratings based on coil power. The solenoid head's AC/DC interchangeability eliminates the need to remove the valve. All applicable EC Directives are met by the solenoid valves.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Connection	Port: G1/4
Flow Coefficient	KV: 0.22 m3/h
Flow Coefficient	KV: 3.6 l/min
Functions	3/2 NC
Material	Brass
Orifice	2.7 mm
Power	AC: 10.5 W
Power	DC: 11.2 W
Series	374
Temperature	- 25°C to + 80°C
Type	Solenoid Valve
Voltage	120 VDC
Weight	0.50 Kg
Working pressure max	10 bar
Working pressure min.	0

Part Number: ASCO SCE374A017MS VD
Series: 374
Size: 1/4-inch
Coil Voltage: 120 VDC
Power Coil: 11.2W
Valve Type: Solenoid valve for precise control of fluid or gas flow
Application: Ideal for applications requiring reliable operation in fluid and gas systems
Design: Direct-acting solenoid valve for efficient and fast response
Purpose: Controls air, gas, or liquids in automated industrial systems

DOWNLOAD CATALOG
