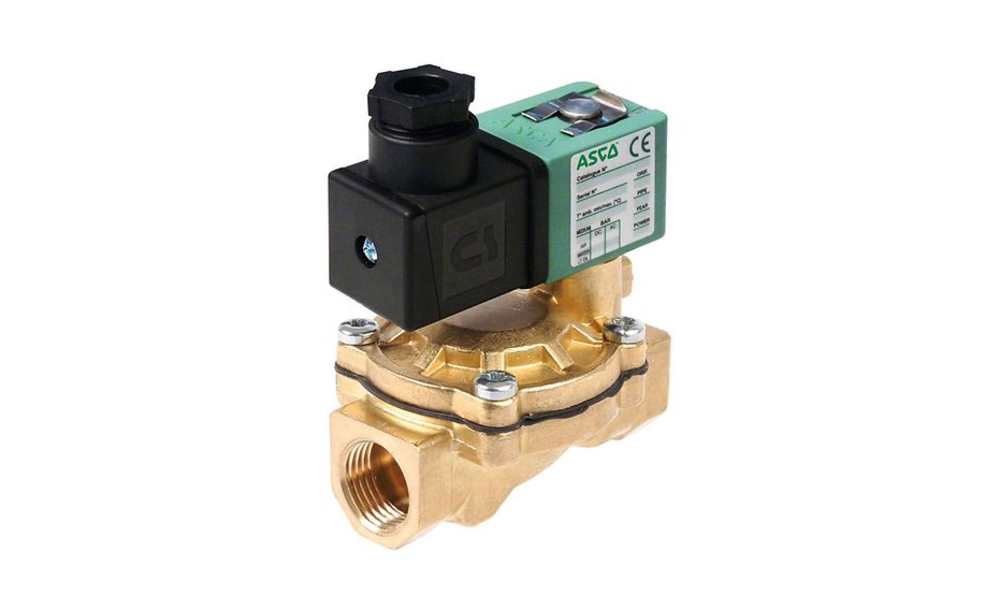

ASCO SCE238D001.48/DC, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in

Name: ASCO SCE238D001.48/DC, Solenoid Valve , 2 port(s) , NC, 48 V, 1/4in
Brand: Asco
SKU: SCE238D001.48/DC
Availability: OutOfStock

Part Number : SCE238D001.48/DC

Availability: Sold out

Detailed Description
Specifications

The Asco solenoid valve is engineered for precision and reliability, offering an efficient solution for controlling water, air, and various inert gases. Designed with a built-in pilot and floating diaphragm, it operates proficiently even under varying pressure conditions. With a robust construction featuring brass and stainless steel components, this valve ensures durability while meeting all relevant EU directives. Its ambient temperature range allows for versatile installation in diverse environments. Additionally, this valve boasts compatibility with both AC and DC voltage inputs, making it adaptable for a range of applications in industrial automation and control.

Minimum operating pressure differential ensures effective functionality
Interchangeable magnetic heads offer flexibility for users
Constructed with high-quality materials to enhance longevity
Designed to satisfy stringent electrical safety standards
IP65 moulded enclosure provides superior protection against dust and water
Can be mounted in any position without impacting performance
Supports a wide range of fluids, enhancing compatibility across various industries
Available with optional seals for specific service requirements

Brand	Asco
Supply Voltage	48 V
Number of Ports	2
Connection Size	1/4in
Connection	G 1/4
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Air, Inert Gas, Water
Type	Solenoid
Orifice Diameter	12mm
Series	238
Body Material	Brass
Maximum Working Pressure	10 bar
Operating Temperature Range	-10 → +60 °C
Servo Assist	No
Thread Standard or Connection Type	G
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+60°C
Flow Factor Kv	40L/min
