ASCO E290D1450SA0000, Angle Seat type Pneumatic Valve, ISO 1in, 16 bar

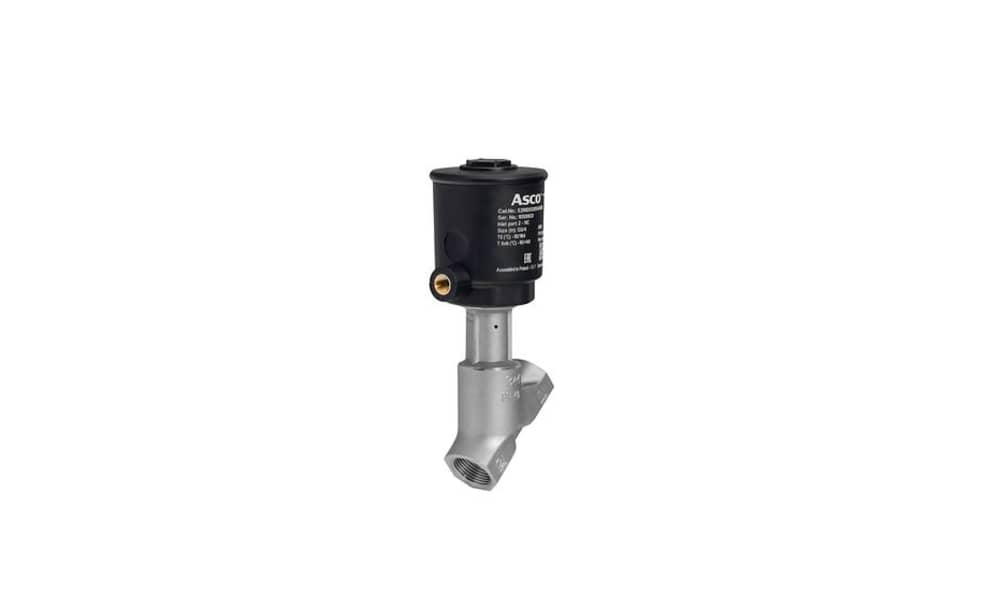

Name: ASCO E290D1450SA0000, Angle Seat type Pneumatic Valve, ISO 1in, 16 bar
Brand: Asco
SKU: E290D1450SA0000
Availability: OutOfStock

Part Number : E290D1450SA0000

Availability: Sold out

Detailed Description
Specifications
Downloads

Clamp Filter, ZCAT Series

Excellent absorption of high-frequency noise
Minimises noise without affecting signal quality
Can be installed with one touch, without having to cut cables
Series offers models for a range of cable outer diameters
Suitable applications include PCs, monitors, HDDs, digital telephones and audio equipment

The Asco Vanne 290 Series Next Gen valve features a G/RP connection type, combining ISO 228-1 and ISO 7-1 standards. Designed as a two-way valve, it operates in a normally open configuration. The nominal diameter is 25 millimeters (1 inch), while the operator diameter measures 63 millimeters with a piloting connection of G1/8 inch. It includes a plastic actuator and a threaded body, ensuring reliability in various applications. The valve body and disc seal are constructed from stainless steel, providing durability. This standard model does not incorporate a third-way port and comes without a predefined voltage specification, allowing flexibility for additional attributes.

Two-way valve design
Normally open function
Plastic actuator
Threaded body
Stainless steel construction

Brand	Asco
Thread Size	1in
Valve Type	Angle Seat
Default Valve Position	NO
Return Type	Spring
Thread Standard	ISO
Maximum Working Pressure	16 bar

ASCO E290D1450SA0000, Angle Seat type Pneumatic Valve, ISO 1in, 16 bar

DOWNLOAD CATALOG

E290D1450SA0000 Datasheet - E290D1450SA0000 A700000013823542

E290D1450SA0000 Datasheet - E290D1450SA0000 A700000013824208
