ASCO E290D1330SA0000, Angle Seat type Pneumatic Valve, ISO 3/4in, 16 bar

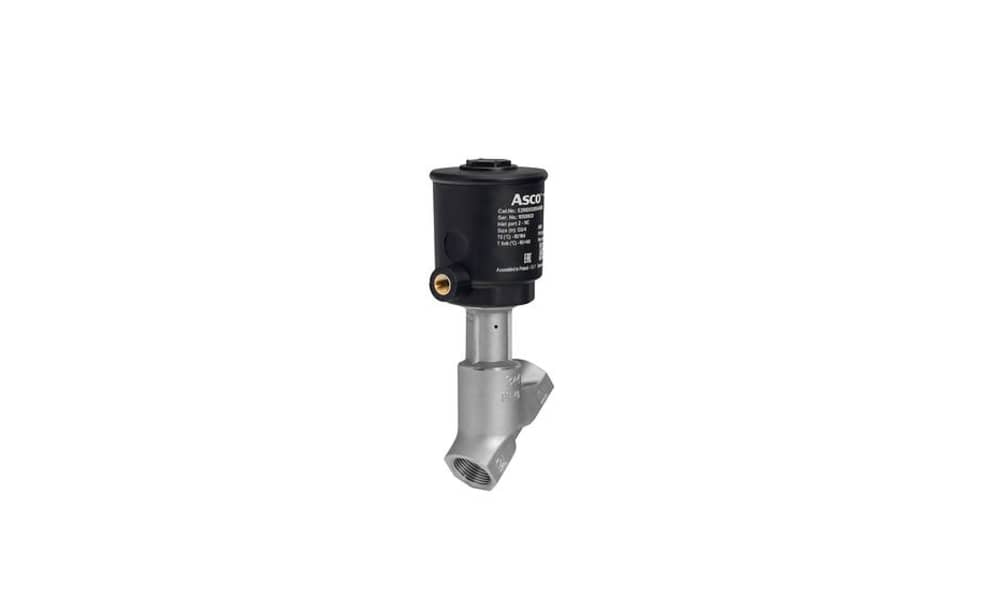

Name: ASCO E290D1330SA0000, Angle Seat type Pneumatic Valve, ISO 3/4in, 16 bar
Brand: Asco
SKU: E290D1330SA0000
Availability: OutOfStock

Part Number : E290D1330SA0000

Availability: Sold out

Detailed Description
Specifications

The Asco Vanne 290 series next gen valve features a G or RP connection, combining ISO 228-1 and ISO 7-1 standards. It is a 2-way valve with a normally open function and a nominal diameter of 20mm, equivalent to 3/4 inch. The valve includes a plastic actuator with a piloting connection diameter of 50mm and a G1/8 inch connection. The valve body is made of stainless steel, and the disc seal is PTFE. It operates without voltage and does not offer additional options or attributes.

Nominal diameter is 20mm equal to 3/4 inch
Piloting connection diameter is 50mm with G1/8 inch
Valve body is stainless steel, and disc seal is PTFE
Standard valve, without body or voltage

Brand	Asco
Thread Size	3/4in
Valve Type	Angle Seat
Default Valve Position	NO
Return Type	Spring
Thread Standard	ISO
Maximum Working Pressure	16 bar
