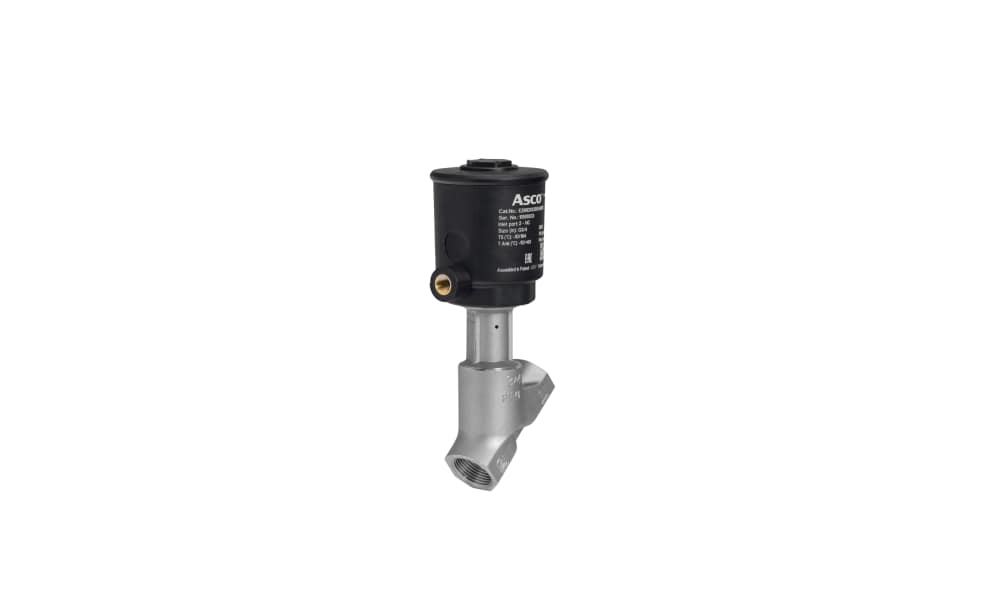

ASCO E290D0230SA0000 Angle Seat Valve, G 1/2" (DN15), Normally Closed, 316L Stainless Body, 50 mm Actuator
ASCO E290D0230SA0000 Angle Seat Valve 1/2" NC | KSA
PRODUCT SUMMARY
The ASCO E290D0230SA0000 angle seat valve is a general-purpose 1/2" normally closed valve with an AISI 316L stainless steel body and a 50 mm glass-fibre-reinforced PA actuator. It handles up to 16 bar differential pressure on air and liquids and up to 10 bar on steam, with a Kv value of 5.8.
For pricing and availability in Saudi Arabia, contact General Tech at +966 569 289 544.
PRODUCT DESCRIPTION
The ASCO E290D0230SA0000 is a Series 290 pneumatic angle seat valve designed for general-purpose on/off control in 1/2" process lines.
The valve is normally closed, keeping the line shut until pilot air lifts the disc. Flow enters under the disc, and the valve provides a Kv value of 5.8 (Cv 6.7), with a listed water flow rate of 96 l/min at a 1 bar differential pressure.
Its AISI 316L stainless steel body is suitable for air, inert gases, water, steam and light oils where the specified materials are compatible with the media. The valve supports up to 16 bar differential pressure for air and liquids and up to 10 bar for steam.
The 50 mm glass-fibre-reinforced PA actuator provides a compact and lightweight design, with the complete valve weighing approximately 0.9 kg. PTFE is used for the disc seal and stuffing box, while an FPM wiper seal protects the AISI 431 stainless steel stem.
The actuator rotates 360°, allowing convenient positioning of the G1/8 pilot port. The valve can be installed in any position and operates with filtered air or water as the pilot medium.
For a smaller actuator and food-contact material option, the E290D0210SFB000 is an alternative 1/2" model. The E290D32T0SA0000 provides entry above the disc and a stainless steel actuator for applications involving frequent steam cycling.
KEY BENEFITS
316L stainless steel body for demanding process applications
Normally closed 2/2 pneumatic operation
Up to 16 bar differential pressure for air and liquids
Up to 10 bar steam service
Kv 5.8 (Cv 6.7) flow capacity
50 mm glass-fibre-reinforced PA actuator
Lightweight complete valve at approximately 0.9 kg
PTFE disc seal and stuffing box
G1/8 pilot port
360° actuator rotation for pilot-port access
Suitable for air, inert gases, water, steam and light oils
For pricing and availability, contact General Tech at +966 569 289 544.
WHO THIS PRODUCT IS BEST FOR
The ASCO E290D0230SA0000 is suitable for 1/2" water, air and light-oil lines used on machines and industrial skids.
Typical applications include water treatment and desalination dosing, HVAC make-up water, compressed-air outlets and lubrication circuits.
It can also be used in textile and laundry plants for low-pressure steam applications, as well as utility water and air services in food, beverage and packaging lines across Saudi Arabia.
HOW TO USE / HOW IT WORKS
1. Install the valve
Install the valve in any position and ensure the flow arrow on the body points in the downstream direction. Seal the threads appropriately for the media and application.
2. Connect the pilot supply
Supply filtered air or water to the G1/8 pilot port through a suitable 3/2 solenoid pilot valve.
3. Regulate pilot pressure
Set the pilot pressure between 4.5 and 10 bar.
4. Test the valve
Cycle the valve several times under line pressure. Confirm full opening, tight closing and absence of leaks before normal operation.
FREQUENTLY ASKED QUESTIONS
What is the Kv value of the E290D0230SA0000?
The valve has a Kv value of 5.8 (Cv 6.7), with a listed water flow rate of 96 l/min at a 1 bar differential pressure.
What is the maximum pressure?
The maximum differential pressure is 16 bar for air and liquids and 10 bar for steam.
Can it handle steam?
Yes. The source data specifies steam service up to 10 bar and 184°C.
What pilot pressure does it need?
The required pilot pressure is between 4.5 and 10 bar.
Is the E290D0230SA0000 normally closed?
Yes. It is a 2/2 normally closed, externally pilot-operated angle seat valve.
What actuator does it use?
It uses a 50 mm glass-fibre-reinforced polyamide actuator. The complete valve weighs approximately 0.9 kg.
