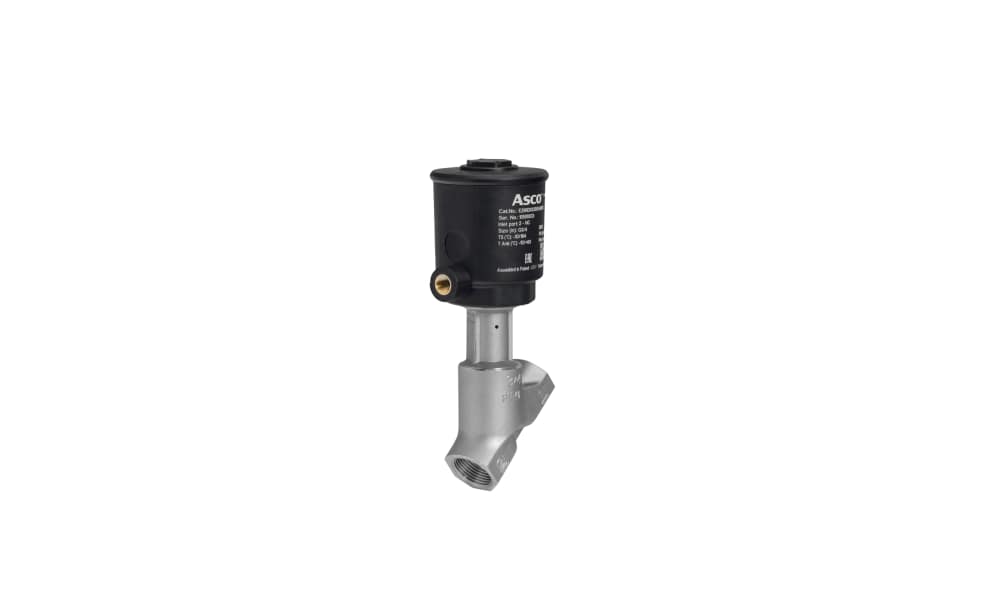

ASCO E290D0210SFB000 Angle Seat Valve, G 1/2" (DN15), Normally Closed, 316L Body, Food Contact Option FB0, 32 mm Actuator
ASCO E290D0210SFB000 Angle Seat Valve 1/2" NC | KSA
PRODUCT SUMMARY
The ASCO E290D0210SFB000 angle seat valve is a compact 1/2" normally closed valve with a 316L stainless steel body and FB0 food-contact material option. Its 32 mm glass-fibre-reinforced PA actuator keeps the valve lightweight at approximately 0.4 kg. It is rated up to 10 bar for air, liquids and steam, with a Kv value of 4.1.
For pricing and availability in Saudi Arabia, contact General Tech at +966 569 289 544.
PRODUCT DESCRIPTION
The ASCO E290D0210SFB000 is a compact Series 290 pneumatic angle seat valve designed for dosing, sampling, filling and other small-flow applications where installation space is limited.
The valve features a 1/2" (DN15) stainless steel body and a 32 mm actuator made from glass-fibre-reinforced polyamide. The SFB suffix includes the FB0 food-contact material option, supporting applications requiring suitable food-contact materials according to ASCO's option code.
The valve operates as a 2/2 normally closed valve, with flow entering under the disc. The valve remains closed without pilot air and requires a minimum pilot pressure of 4.7 bar to open. The pilot pressure range is up to 10 bar.
PTFE is used for the disc seal and stuffing box, while the AISI 431 stainless steel stem uses an FPM wiper seal. The valve supports air, inert gases, water, steam and light oils where compatible with the specified materials.
The E290D0210SFB000 has a Kv value of 4.1 (Cv 4.7), with a water flow rate of approximately 68 l/min at 1 bar differential pressure. It supports fluid temperatures from -10°C to +184°C and can be installed in any position, with the actuator rotating 360° for pilot-port access.
For a standard 1/2" version with a larger 50 mm actuator and up to 16 bar differential pressure, the E290D0230SA0000 is an alternative. The E290D7250SA0000 is another option when lower pilot pressure is required.
KEY BENEFITS
316L stainless steel body for demanding industrial applications
FB0 food-contact material option according to ASCO's option code
Compact 32 mm actuator for space-limited machinery
Normally closed operation for automatic shut-off
Up to 10 bar differential pressure for air, liquids and steam
Kv 4.1 (Cv 4.7) for controlled small-flow applications
PTFE disc seal and stuffing box
Pilot pressure range from 4.7 to 10 bar
360° actuator rotation for convenient pilot-port access
Lightweight construction at approximately 0.4 kg
For pricing and availability, contact General Tech at +966 569 289 544.
WHO THIS PRODUCT IS BEST FOR
The ASCO E290D0210SFB000 is suitable for small food and beverage lines in Saudi Arabia, including dairy and juice dosing, bottled water filling, syrup handling, sampling points and short CIP branches.
It can also be considered for pharmaceutical and cosmetics packaging machinery, as well as low-flow air and water services on packaging equipment where the specified materials and operating conditions are appropriate.
HOW TO USE / HOW IT WORKS
1. Install the valve
Mount the valve in-line in any position and ensure the flow direction shown on the valve body matches the system flow direction.
2. Connect the pilot supply
Connect filtered air or water to the G1/8 pilot port through a suitable 3/2 solenoid pilot valve.
3. Set pilot pressure
Provide pilot pressure between 4.7 and 10 bar.
4. Test operation
Cycle the valve several times and confirm full actuator movement and tight shut-off before putting the system into normal operation.
FREQUENTLY ASKED QUESTIONS
What does SFB000 mean?
The S designation identifies the stainless steel body, while FB0 refers to the food-contact material option according to ASCO's option code.
What is the Kv value of the E290D0210SFB000?
The valve has a Kv value of 4.1, with a Cv value of 4.7.
Can the valve handle steam?
Yes. The source data specifies up to 10 bar steam pressure and fluid temperatures up to 184°C.
What pilot pressure does it require?
The minimum pilot pressure is 4.7 bar, with a maximum pilot pressure of 10 bar. Filtered air or water can be used as the pilot medium.
Is the valve normally closed?
Yes. The E290D0210SFB000 is a 2/2 normally closed, externally pilot-operated valve.
What is the actuator size?
It uses a compact 32 mm glass-fibre-reinforced PA actuator.
Where can I buy the ASCO E290D0210SFB000 in Saudi Arabia?
Contact General Tech at +966 569 289 544 or mathews@generaltechsaudi.com for pricing and availability.
