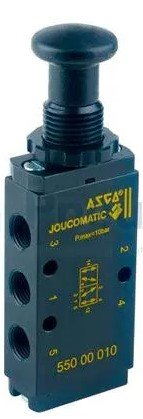

ASCO 55000010 | Spool Valve | Push-Pull Button | Function 5/2 Way | Port Type G 1/8-inch

Name: ASCO 55000010 | Spool Valve | Push-Pull Button | Function 5/2 Way | Port Type G 1/8-inch
Brand: Asco
SKU: 55000010
Availability: OutOfStock

Part Number : 55000010

EMERSON ASCO's 55000010 Series 550 Mini Spool Valve Air or neutral gas, whether filtered, lubricated or not, are among the applications for the manually operated ASCO series 550 tiny spool valve. The Series 550 can tolerate temperatures ranging from -10°C to 60°C and has a maximum operating pressure of 10 bar.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Actuation	Push Button
Ambient temperature	-10 - 60 °C
Fluid	Temperature: -10 - 60 °C
Functions	5/2 Push-pull button
Material	Light Alloy
Operating pressure	0 - 10 bar
Port Size	G 1/8"
Port Type	ISO 228/1
Product Type	Pneumatic Valve
Series	550
Weight	0.09 kg

Push-Pull Button Operation: Provides easy and reliable manual control for valve actuation.
5/2 Way Function: Offers a 5-port, 2-position configuration for precise flow control in pneumatic systems.
G 1/8-inch Port Type: Equipped with 1/8-inch G-threaded ports for seamless integration into compact pneumatic circuits.
Durable Design: Engineered for reliable performance and long-lasting durability in industrial environments.

ASCO 55000010 | Spool Valve | Push-Pull Button | Function 5/2 Way | Port Type G 1/8-inch

DOWNLOAD CATALOG
