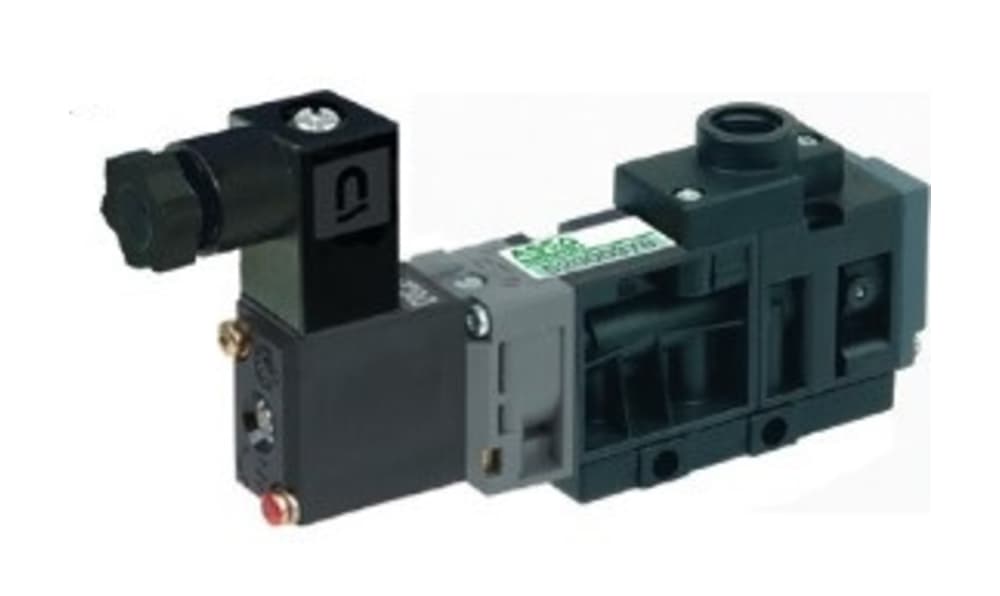

ASCO 520 00 190, 3/2 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 520 Series 24V ac

Name: ASCO 520 00 190, 3/2 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 520 Series 24V ac
Brand: Asco
SKU: 520 00 190
Availability: OutOfStock

Part Number : 520 00 190

Availability: Sold out

Detailed Description
Specifications
Downloads

519-520-521 series mini valves, assembly only or on manifold

3/2, 5/2 or 5/3 mini distributors for fitting onto manifolds or alone.
Stock numbers 302-6291 and 302-6308 fit onto manifolds only.
Monostable, bistable, closed centre or open centre versions.
Available in 3 different sizes: M5, G1/8" or G1/4".

Brand	Asco
Function	3/2
Connection Port Thread	G 1/8
Actuation Type	Pilot/Pilot
Manufacturer Series	520
Mounting Style	Manifold
Solenoid Voltage	24V ac
Solenoid Fitted	Yes
Number of Ports	3/2
Body Material	Polyacetal
Maximum Flow Rate	400L/min
Solenoid Power Consumption	2VA
Minimum Operating Pressure	1.5bar
Maximum Operating Pressure	8bar
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	+5°C
Thread Size	1/8in
Thread Standard	G

ASCO 520 00 190, 3/2 Pneumatic Solenoid Valve - Pilot/Pilot G 1/8 520 Series 24V ac

DOWNLOAD CATALOG
