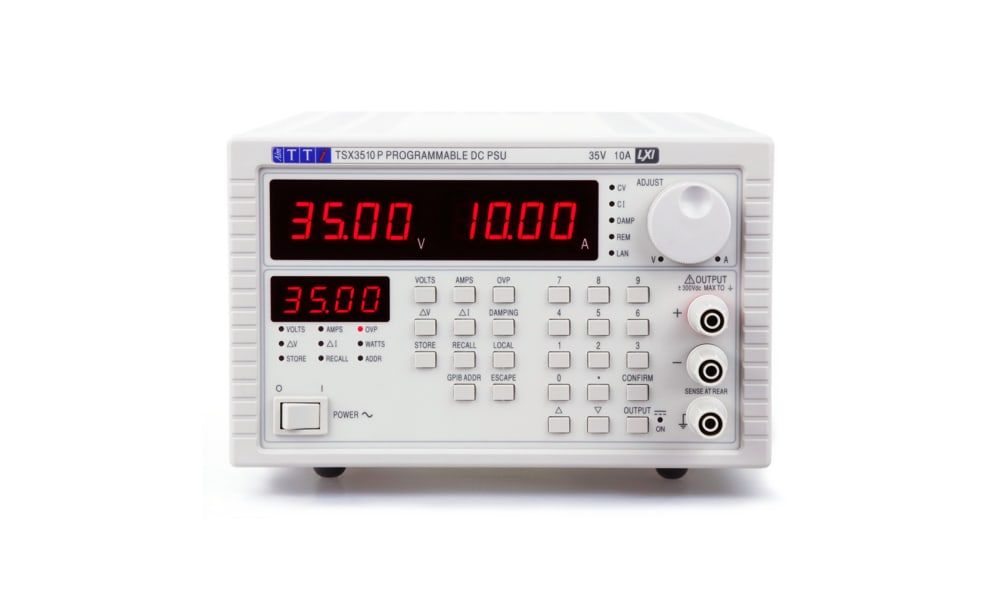

Aim-TTi TSX Series Digital Bench Power Supply, 0 → 35V, 0 → 10A, 1-Output, 350W

Name: Aim-TTi TSX Series Digital Bench Power Supply, 0 → 35V, 0 → 10A, 1-Output, 350W
Brand: Aim Tti
SKU: TSX3510P Lxi
Availability: OutOfStock

Part Number : TSX3510P Lxi

Availability: Sold out

Detailed Description
Specifications
Downloads

The TSX model incorporates conventional analog controls for precision with Simplicity. Coarse and fine voltage controls offer fast setting with high setting resolution at all levels while a semi-logarithmic current control provides resolution commensurate with the current level. Fan-free operation means that these PSUs add no noise to the bench environment. These PSUs are ideally suited to general purpose applications in many technology areas.

350/360 watts, standard and bus programmable
Low noise, excellent transient response
CV & CI operation with automatic crossover
Comprehensive protection including variable OVP trip
High setting resolution, remote sense terminals.
USB, RS232, GPIB and LAN (LXI) interfaces.

Supplied with

Test Bridge Logging and sequencing software

Multi instrument control

Logging to table and graph format

Timed sequence control across all instruments and channels

USB, LAN and RS232 compatible

Brand	Aim-TTi
Series	TSX
Model Number	TSX3510P Lxi
Number of Outputs	1
Supply Voltage	110 → 240V ac
Output Voltage	0 → 35V
Output Current	0 → 10A
Power Rating	350W
Number of Displays	3
Type	Digital
Bench Power Supply Type	Programmable DC Power Supply
Digital/Analogue	Digital
Input Connector	IEC 320
Output Connector	Binding Post Terminal
Maximum Temperature	+40°C
Minimum Temperature	+5°C
