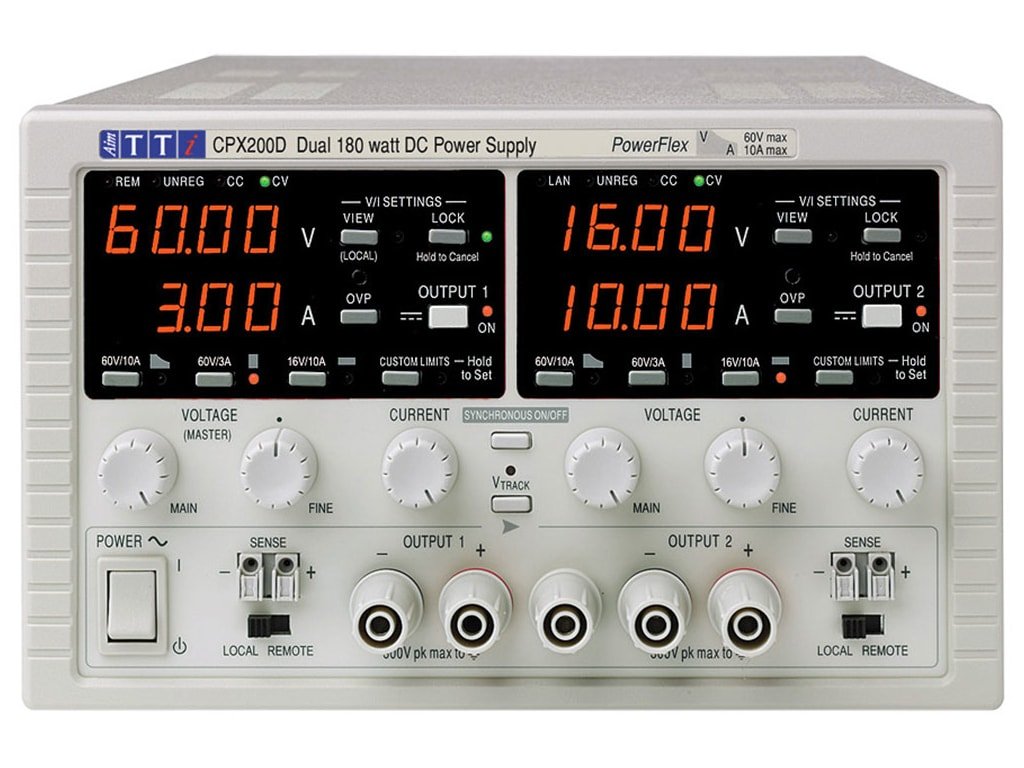

Aim TTi CPX200D | PowerFlex Max 60V or 10 A | Twin 180W
One of Aim-most TTi's popular product lines is the CPX Series of laboratory DC power supply. There are tens of thousands of CPX models in use worldwide. They can deliver larger currents at lower voltages thanks to PowerFlex control, allowing them to adjust the power to fit a wider range of applications. With a total power range of 360 watts to 840 watts, the line consists of single and dual output variants. A different kind of laboratory power supply called the CPX series was created to satisfy the demand for flexibility in the selection of voltage and current. In a traditional PSU, the power capability decreases directly with output voltage due to a fixed current limit.
- Detailed Description
- Specifications
- Features
- Downloads
Aim-TTi CPX Series Power Supplies CPX200D & CPX200DP
Features and Benefits
Up to 60V and up to 10A per output (180W maximum per output)
Low output noise and good transient response
True analogue controls with digital settings locking
Independent outputs or isolated voltage tracking
Outputs can be wired in series or parallel for 120V or 20A
4 digit fixed resolution meters
GPIB, RS-232, USB and LAN LXi interfaces (CPX200DP only)
Test Bridge PC Software
Compact Half rack 3U case for bench use or rack mounting
Supplied with
- Multi instrument control
- Logging to table and graph format
- Timed sequence control across all instruments and channels
- USB, LAN and RS232 compatible
| Current range | 0A to 10A |
| Dimensions | 210 x 130 mm (1/2 rack 3U) x 377mm (size excludes feet, knobs and terminals). |
| Display | Dual 4-digit meters, 10mm (0·39�) LED. |
| Operating Temperature | +5oC to +40oC, 20% to 80% RH |
| Storage Temperature | -40oC to + 70oC |
| Voltage | 0V to 60V |
| Weight | 5.0kg (11lb) |
Compact design uses less bench/rack space
Isolated voltage tracking for versatility
DC output switches and "view limits" buttons
True Analog controls - for ease of use
Synchronous switching of both outputsCPX200D Twin 180W PowerFlex Max 60V or 10A
PowerFlex regulation - for maximum flexibility
Two fully independent outputs
Variable OVP and OCP trips
Low noise and good transient response
Related Products

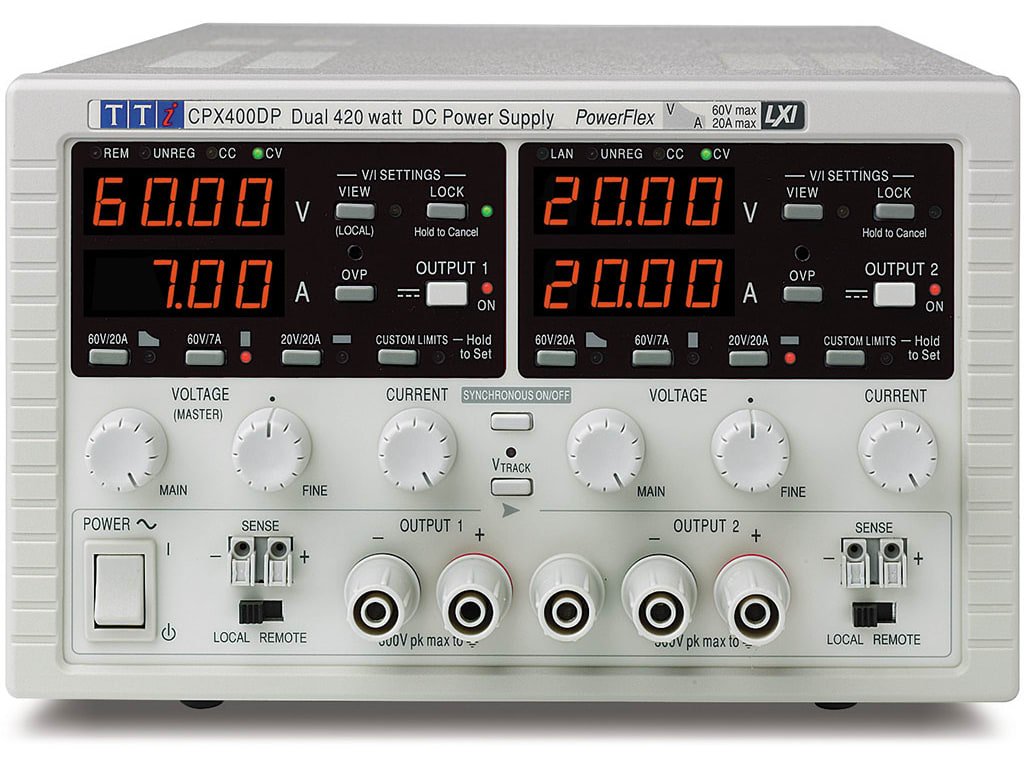

TTi CPX400DP | PowerFlex Dual output 840 watt PSU with USB, RS232, LAN
TTi CPX400DP | PowerFlex Dual output 840 watt PSU with USB, RS232, LAN
Aim TTi CPX400D | PowerFlex DC Power Supply
Aim TTi CPX400D | PowerFlex DC Power Supply

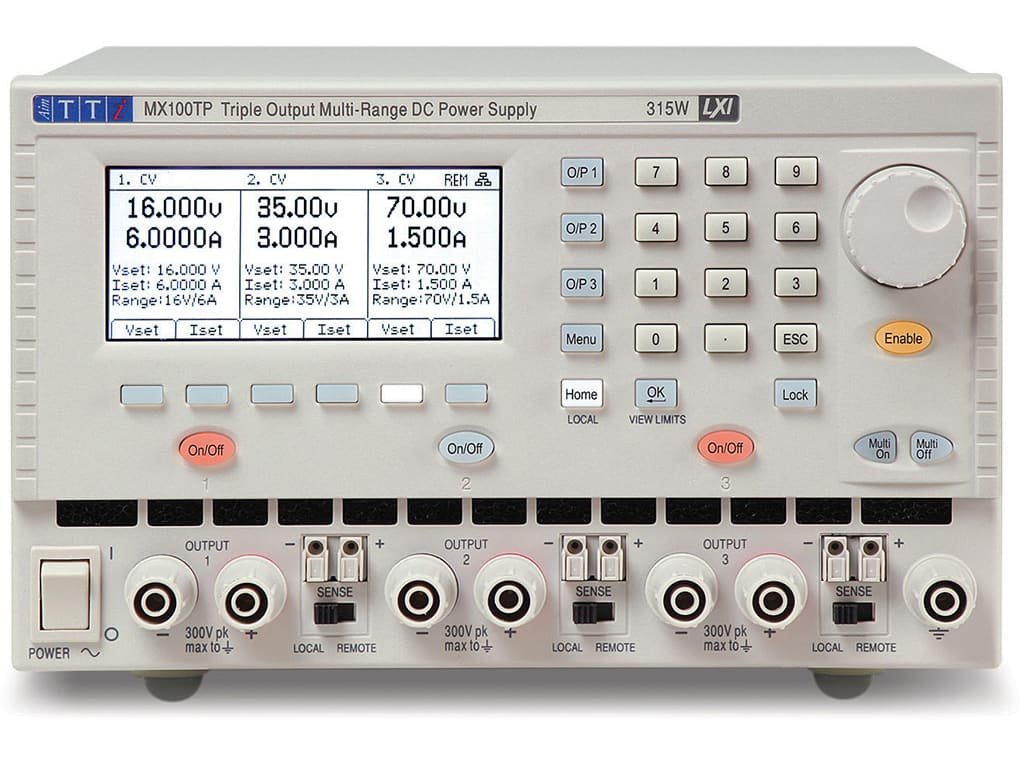

Aim TTi MX100TP | Combined Output with USB, RS232 and LAN Interfaces | Triple Multi Range 315W
Aim TTi MX100TP | Combined Output with USB, RS232 and LAN Interfaces | Triple Multi Range 315W

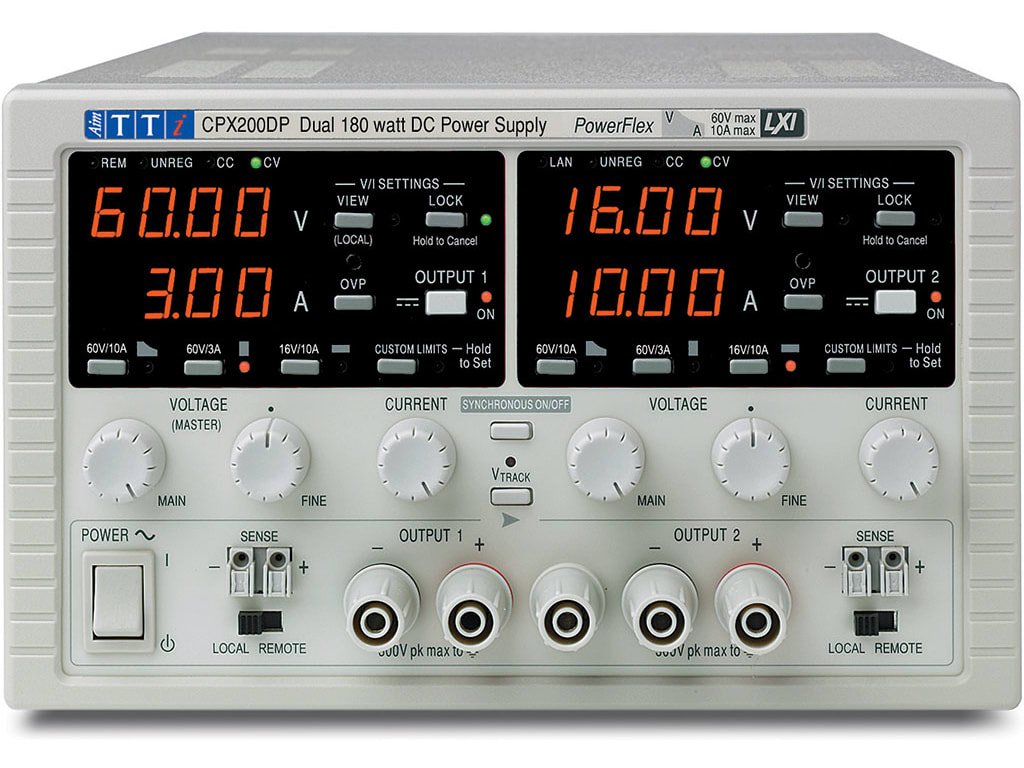

Aim TTi CPX200DP | PowerFlex DC Power Supply Dual Outputs | with USB, RS232 and LAN Interfaces
Aim TTi CPX200DP | PowerFlex DC Power Supply Dual Outputs | with USB, RS232 and LAN Interfaces

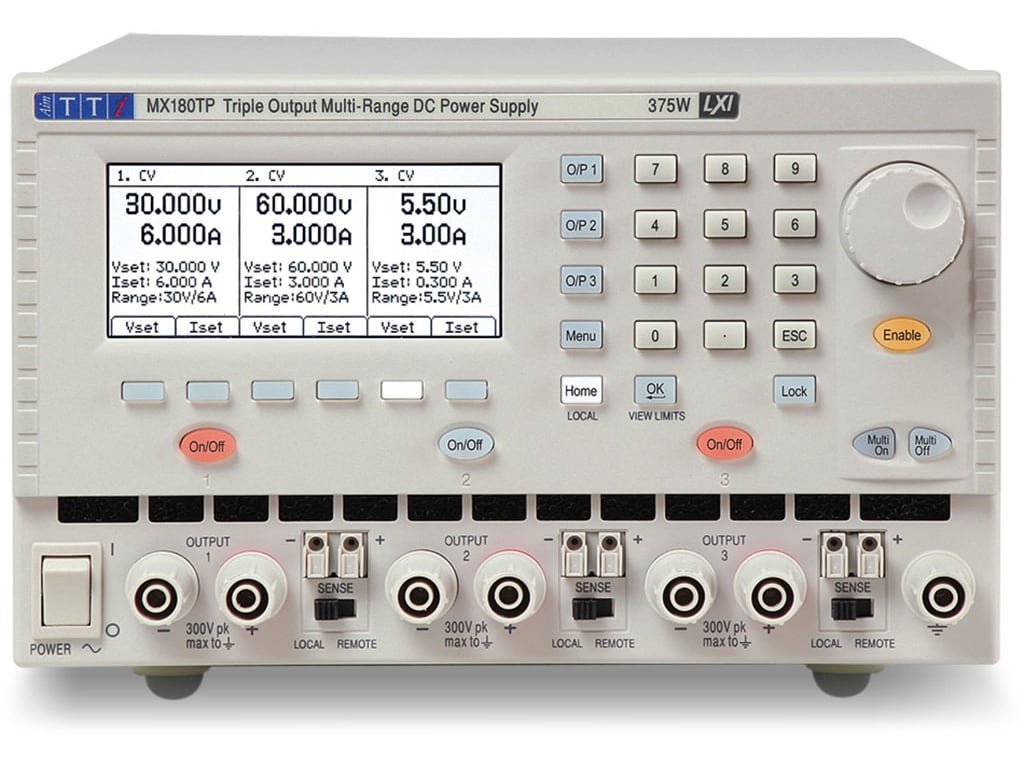

Aim TTi MX180TP | DC Power Supply | Triple Output 375 Watt with USB, RS-232 and LAN (LXI) Interfaces
Aim TTi MX180TP | DC Power Supply | Triple Output 375 Watt with USB, RS-232 and LAN (LXI) Interfaces

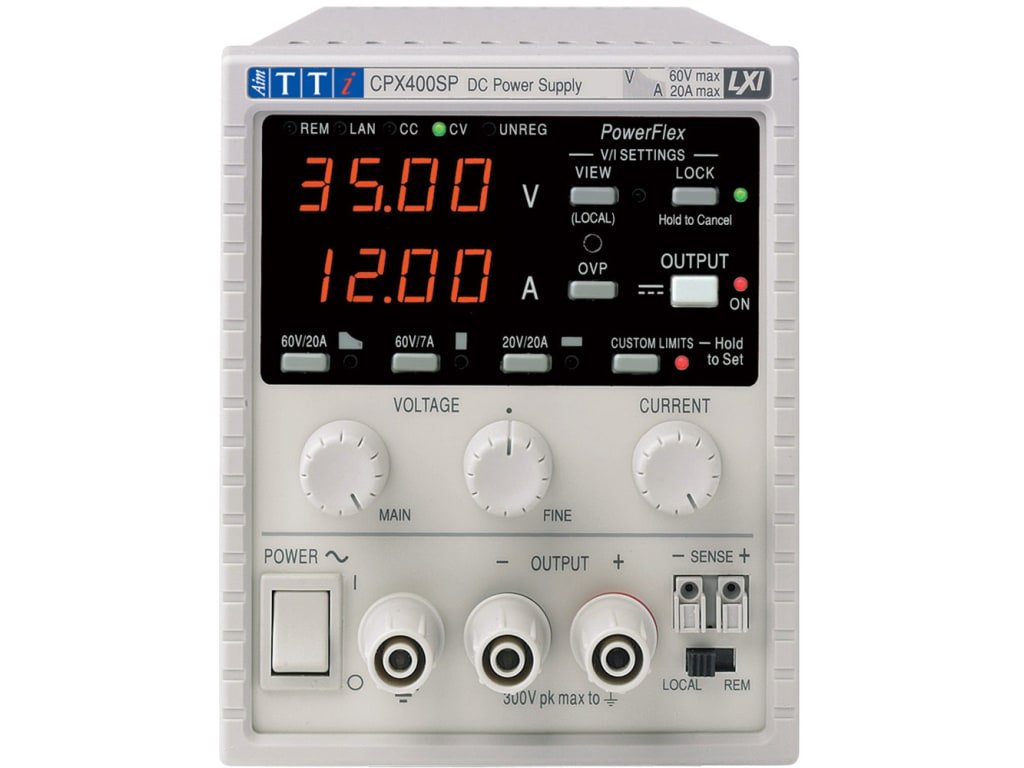

Aim TTi CPX400SP | PowerFlex DC PSUs | Single Output | 420 Watt with Digital Remote Control via USB, RS232 and LAN
Aim TTi CPX400SP | PowerFlex DC PSUs | Single Output | 420 Watt with Digital Remote Control via USB, RS232 and LAN

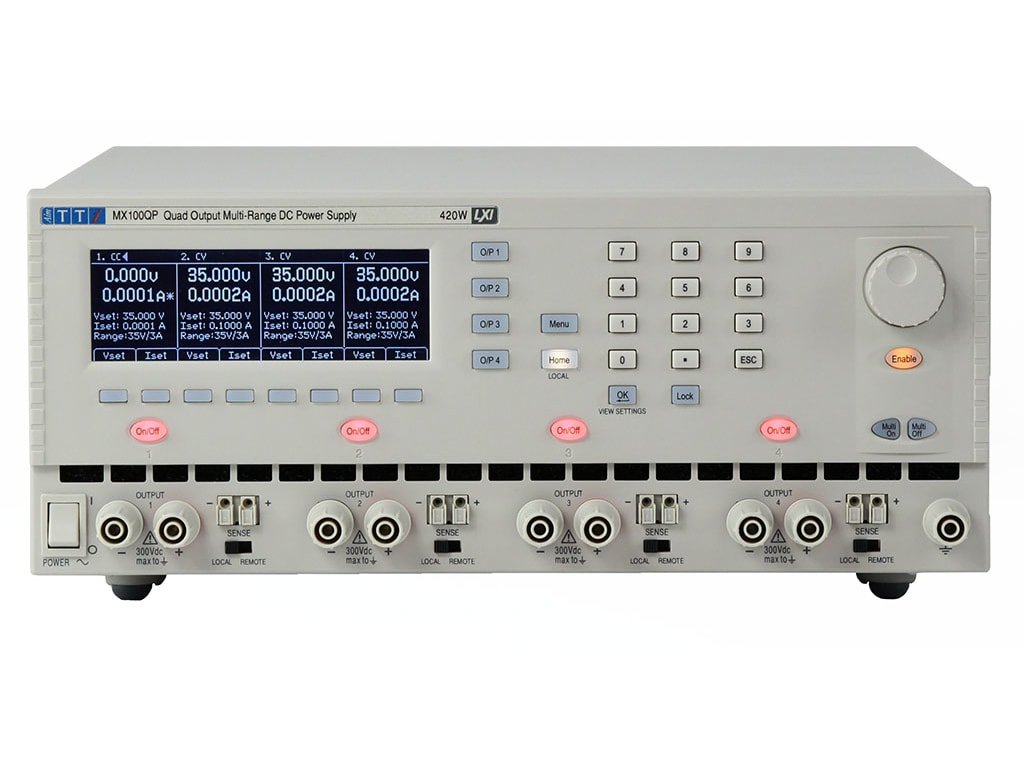

TTi MX100QP | DC Power Supply | 4 x 35V/3A 420W, Multi-Range, with USB, RS232, LAN and GPIB Interfaces
