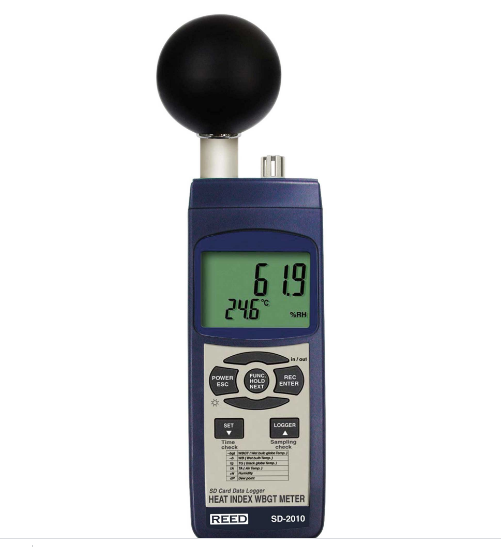

REED SD-2010 | Data Logging Heat Stress Meter | WBGT, SD Card

Name: REED SD-2010 | Data Logging Heat Stress Meter | WBGT, SD Card
Brand: REED Instruments
SKU: SD-2010
Availability: OutOfStock

Part Number : SD-2010

The REED SD-2010 heat stress datalogger calculates Wet Bulb Globe Temperature (WBGT) from temperature, humidity and direct or radiant sunlight, giving a "what it feels like" value. Settings can be adjusted for indoor measurement, and readings are saved to SD card as Excel files.

WBGT with adjustable audible alarm
Indoor measurement setting
SD card logging up to 16 GB
Tripod mount; optional tripod and AC adapter
Optional PC software for live readings

Availability: in stock

Specifications
Features
Downloads

Part Number	SD-2010
Brand	REED
Measures	WBGT, temperature, humidity
Data Logging	SD card (max 16 GB)
Auto shut-off	Yes (after 10 mins/off)
Display	4-digit dual LCD
External Memory	Yes, expandable up to 16Gb with SD card (optional)
Low Battery Indicator	Yes
Max/Min	Yes
Operating Humidity Range	10-85%
Operating Temperature	0 to 122°F (0 to 50°C)
Power Supply	6 x AA batteries or AC Adapter (optional)
Product Certifications	CE
Tripod Mount	Yes

Measures temperature, humidity, dew point, wet bulb, black globe, indoor/outdoor WBGT
Wet Bulb Globe Temperature (WBGT) considers the effects of temperature, humidity and direct or radiant sunlight
In/Out function displays the WBGT value with or without direct sun exposure
Black Globe Temperature (TG) monitors the effects of direct solar radiation on an exposed surface
Adjustable audible alarm
User selectable unit of measure (°F or °C)
Data hold and Max/Min functions
Real-time datalogger with integral SD memory card
User selectable sampling rate from 1 to 3600 seconds
Easy-to-read backlit LCD display
Optional PC software features live tracking via USB connection
Tripod mount for long-term monitoring
Low battery indicator and auto shut off

REED SD-2010 | Data Logging Heat Stress Meter | WBGT, SD Card

DOWNLOAD CATALOG

REED SD-2010 | Data Logging Heat Stress Meter | WBGT, SD Card

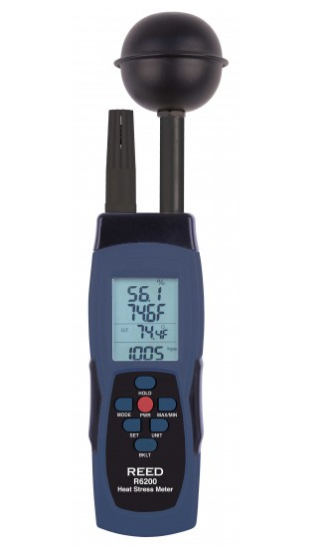

REED R6200 | WBGT Heat Stress Meter | Heat Index, Dew Point, Pressure
