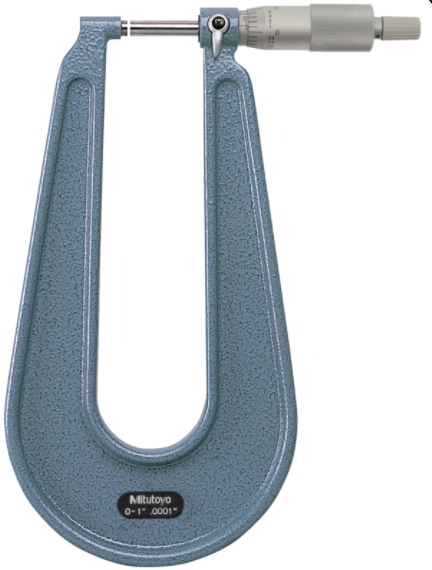

      Mitutoyo 118-107 Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 12" Throat
This Sheet Metal Micrometer is designed with a deep frame for measuring the thickness of sheet material.
This micrometer's large throat depth makes it excellent for measuring sheet metal thickness at a distance from the edge.
• Carbide measuring faces
• Flat-Flat, Spherical-Flat, and Spherical-Spherical measuring faces;
equipped with Ratchet Stop for constant measuring force.

- Specifications
- Features
- Downloads
| Analog/Digital | Analog |
| Delivered | Including box, key, setting standard (from 25 mm upward) |
| Flatness | 0.00004 |
| Graduation | 0.001" |
| Inch-Metric | Inch |
| Mass (main unit) | 2650 g |
| Measuring spindle | With spindle lock, ƒ ̧8 mm, spindle pitch 0.635 mm |
| Measuring surfaces | Carbide-tipped, micro-lap finish |
| Parallelism | 0.00012 |
| Range | 0 - 1" |
| Scale | Thimble and sleeve satin chrome finish, ƒ ̧21 mm |
This Sheet Metal Micrometer is designed with a deep frame for measuring the thickness of sheet material.
This micrometer's large throat depth makes it excellent for measuring sheet metal thickness at a distance from the edge.
• Carbide measuring faces
• Flat-Flat, Spherical-Flat, and Spherical-Spherical measuring faces;
equipped with Ratchet Stop for constant measuring force.
Related Products

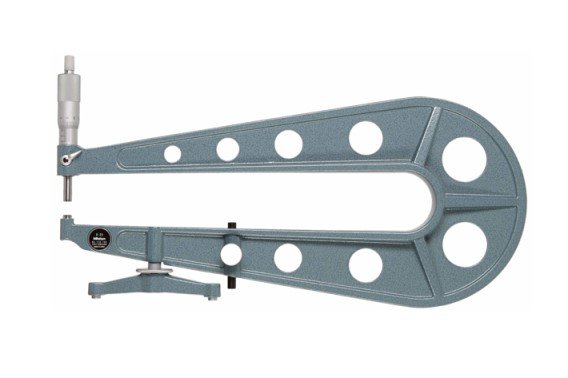

Mitutoyo 118-103 | Sheet Metal Micrometer | Flat Anvil or Spindle | Series 118 | Graduation 0.01mm | Throat Depth 300mm | Range 0 to 25mm


  Mitutoyo 118-103 | Sheet Metal Micrometer | Flat Anvil or Spindle | Series 118 | Graduation 0.01mm | Throat Depth 300mm | Range 0 to 25mm

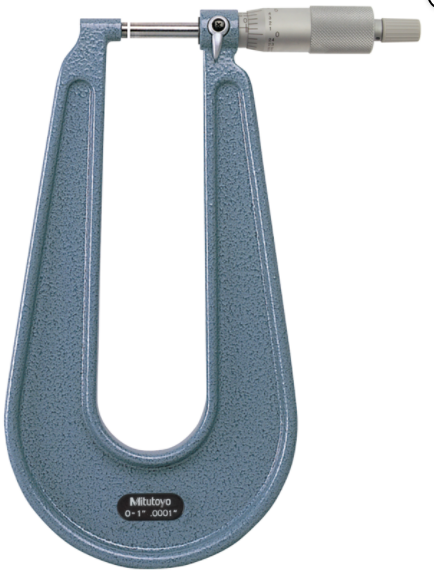

Mitutoyo 118-112 Sheet Metal Micrometer 1-2", Flat Anvil/Spindle, 6" Throat


  Mitutoyo 118-112 Sheet Metal Micrometer 1-2", Flat Anvil/Spindle, 6" Throat

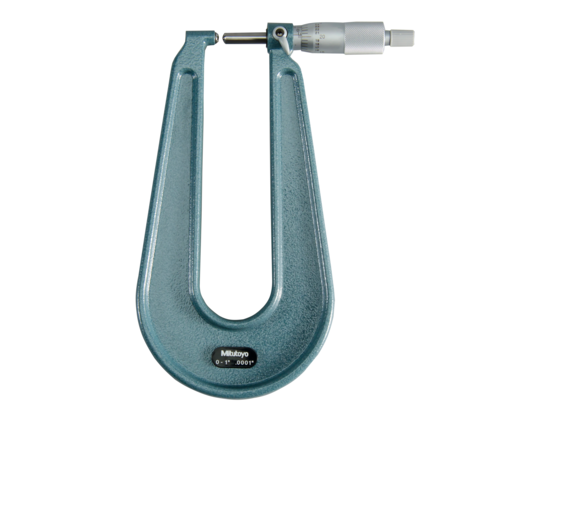

Mitutoyo 118-120 Sheet Metal Micrometer 0-1", Spherical Anvil/Spindle, 6" Throat


  Mitutoyo 118-120 Sheet Metal Micrometer 0-1", Spherical Anvil/Spindle, 6" Throat

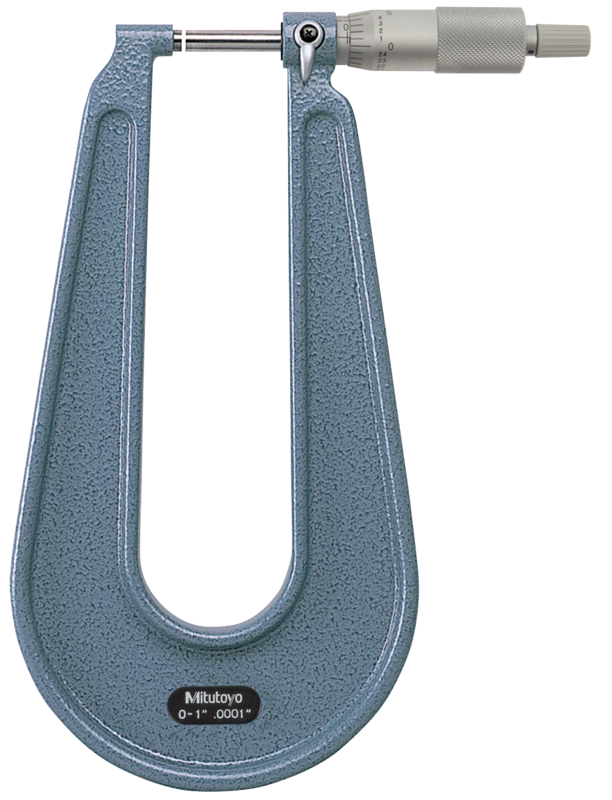

Mitutoyo 118-116 Sheet Metal Micrometer 0-1", Spherical Anvil, 6" Throat


  Mitutoyo 118-116 Sheet Metal Micrometer 0-1", Spherical Anvil, 6" Throat

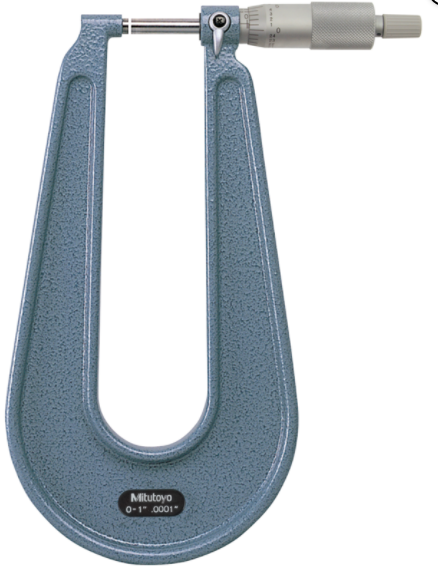

Mitutoyo 118-129 Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 6" Throat


  Mitutoyo 118-129 Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 6" Throat

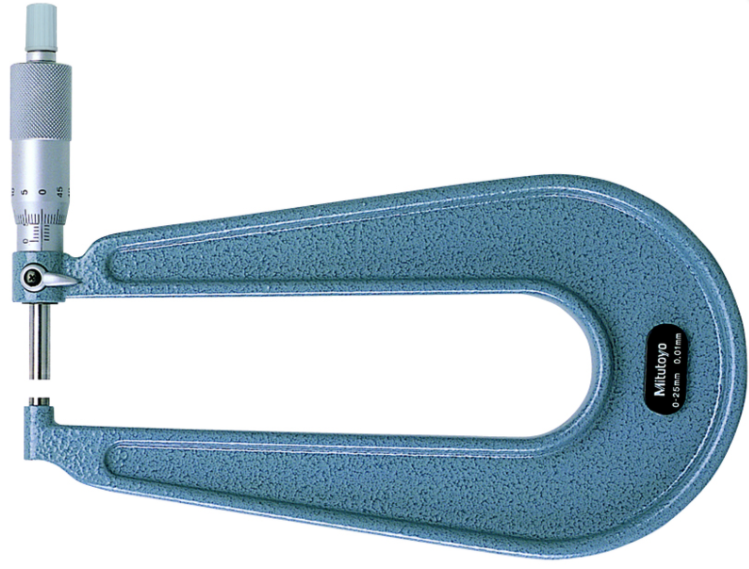

Mitutoyo 118-126 Sheet Metal Micrometer 25-50mm, Spherical Anvil/Spindle, 150mm Throat


  Mitutoyo 118-126 Sheet Metal Micrometer 25-50mm, Spherical Anvil/Spindle, 150mm Throat

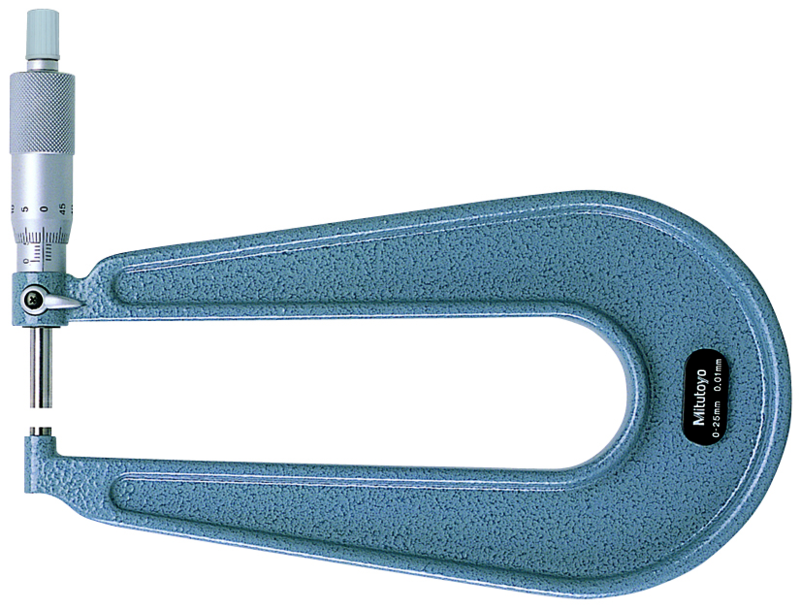

Mitutoyo 118-118 Sheet Metal Micrometer 0-25mm, Spherical Anvil/Spindle, 150mm Throat
