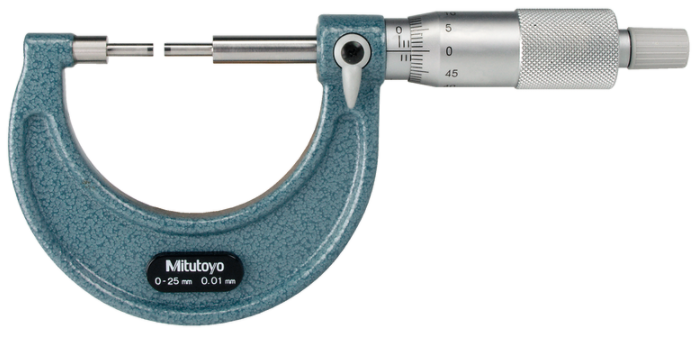

      Mitutoyo 111-215 Spline Micrometer 0-25mm, 2mm Measuring Face
This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:
- Stepped measuring surfaces.
- Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.
- Specifications
- Features
- Downloads
| Accuracy | +/-3 µm |
| Analog/Digital | Analog |
| Delivered | Including box, setting standard (from 25 mm upward), key |
| Flatness | 0.3 µm |
| Graduation | 0.01 mm |
| Inch-Metric | Metric |
| Mass (main unit) | 205 g |
| Measuring spindle | With spindle lock, ƒ ̧6.35 mm, spindle pitch 0.5 mm |
| Measuring surfaces | Carbide-tipped, micro-lap finish, stepped |
| Parallelism | (2+L/100) 1/4m, L = max. range (mm) |
| Range | 0 - 25 mm |
This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:
- Stepped measuring surfaces.
- Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.
Related Products

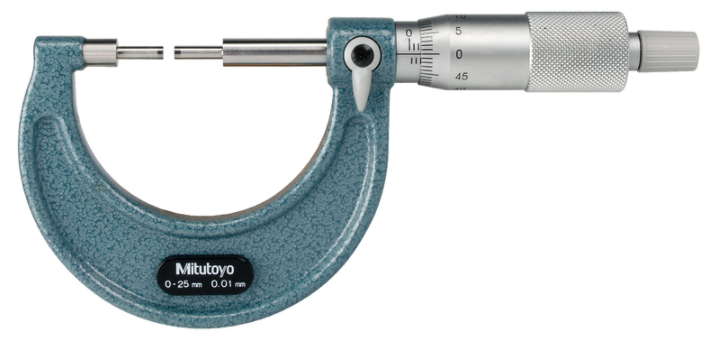

Mitutoyo 111-166 Spline Micrometer 0-1", 0.0001", 3mm Measuring Face


  Mitutoyo 111-166 Spline Micrometer 0-1", 0.0001", 3mm Measuring Face

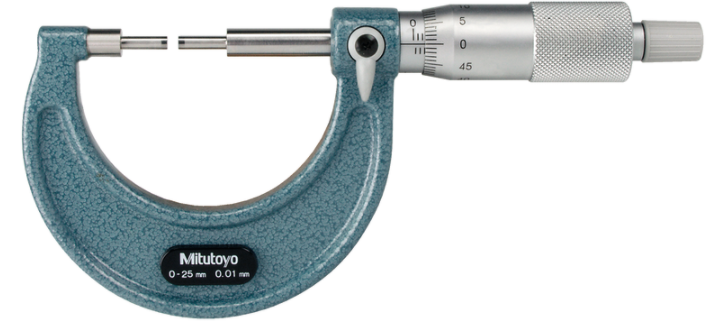

Mitutoyo 111-126 Spline Micrometer 275-300mm, 3mm Measuring Face


  Mitutoyo 111-126 Spline Micrometer 275-300mm, 3mm Measuring Face

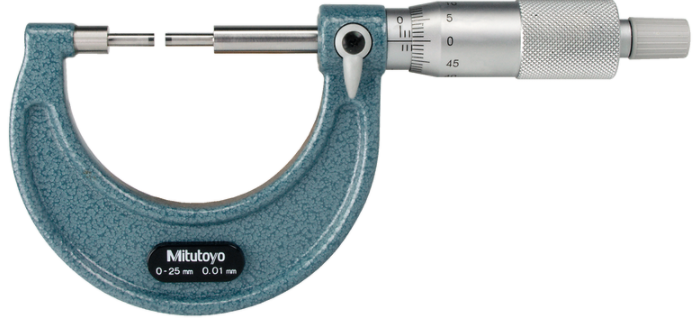

Mitutoyo 111-125 Spline Micrometer 250-275mm, 3mm Measuring Face


  Mitutoyo 111-125 Spline Micrometer 250-275mm, 3mm Measuring Face

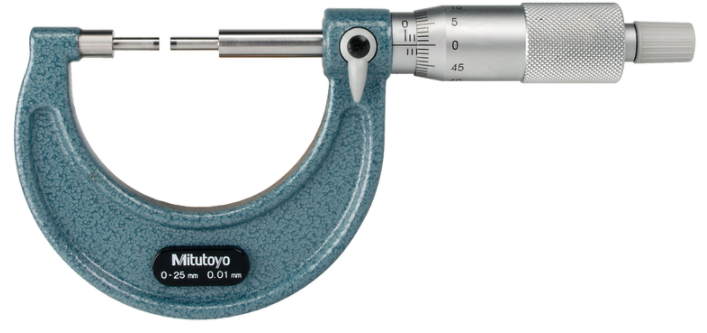

Mitutoyo 111-124 Spline Micrometer 225-250mm, 3mm Measuring Face
Mitutoyo 111-124 Spline Micrometer 225-250mm, 3mm Measuring Face

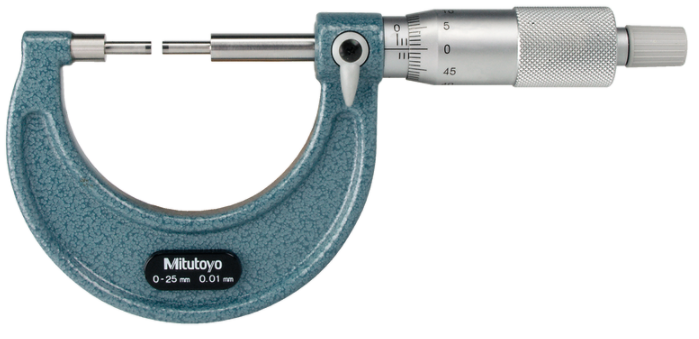

Mitutoyo 111-123 Spline Micrometer 200-225mm, 3mm Measuring Face


  Mitutoyo 111-123 Spline Micrometer 200-225mm, 3mm Measuring Face

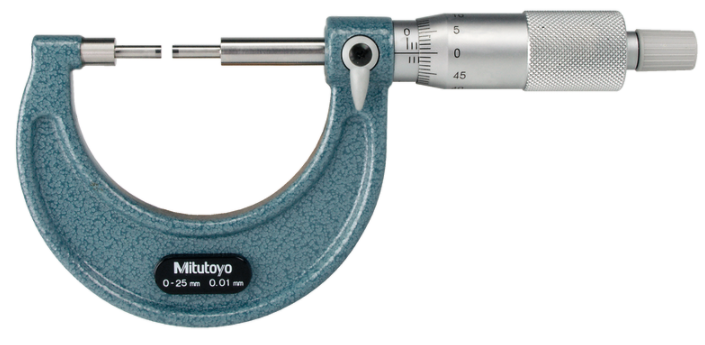

Mitutoyo 111-122 Spline Micrometer 175-200mm, 3mm Measuring Face


  Mitutoyo 111-122 Spline Micrometer 175-200mm, 3mm Measuring Face

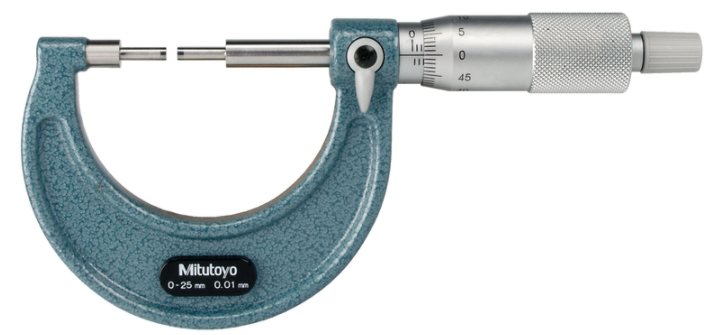

Mitutoyo 111-121 Spline Micrometer 150-175mm, 3mm Measuring Face


  Mitutoyo 111-121 Spline Micrometer 150-175mm, 3mm Measuring Face

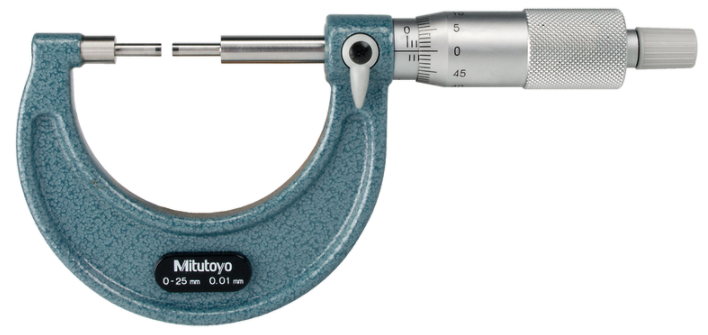

Mitutoyo 111-120 Spline Micrometer 125-150mm, 3mm Measuring Face
