Name: Gagemaker LG-5003-L, Load to load 3-point external/internal lead gage, 0.0005 Resolution, ½ – 4 (0 mm – 101.6 mm) Thread Length.
Rating: 4.7 (25 reviews)

Gagemaker LG-5003-L, Load to load 3-point external/internal lead gage, 0.0005" Resolution, ½” – 4” (0 mm – 101.6 mm) Thread Length.

Gagemaker LG-5003-L, Load to load 3-point external/internal lead gage, 0.0005" Resolution, ½” – 4” (0 mm – 101.6 mm) Thread Length.

Brand :

Stock Status : Contact us for delivery

Brand :

Stock Status :

Out of Stock

Part Number : Gagemaker LG-5003-L

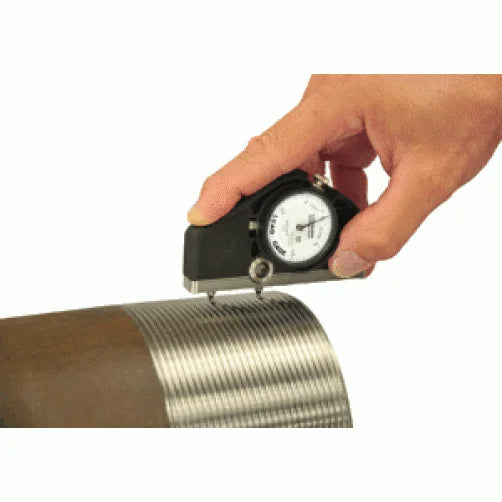

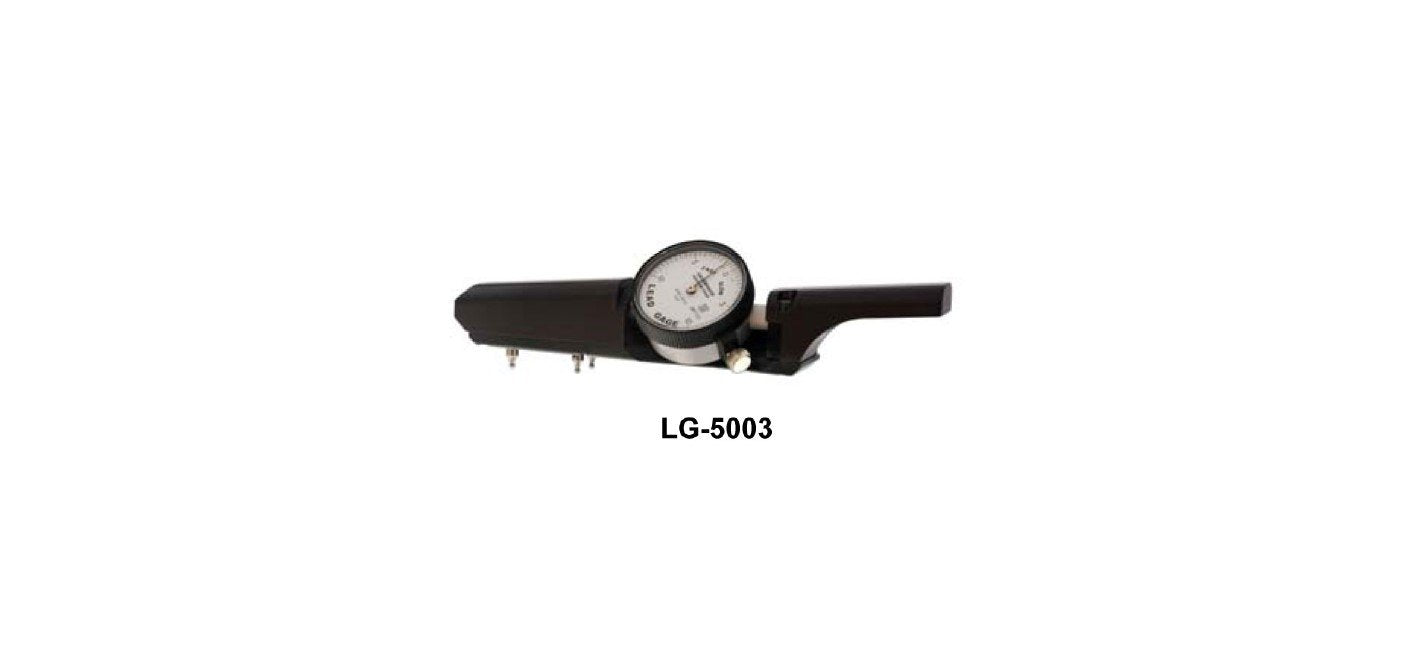

Gagemaker LG-5003-L, Load to load 3-point external/internal lead gage, 0.0005" Resolution, ½” – 4” (0 mm – 101.6 mm) Thread Length. The LG-5003 uses the three-point system to inspect internal and external thread lead. Two fixed contact points at the rear of the gage and one moveable contact point at the front of the gage provide complete stability when taking thread lead measurements. This unique design does. The LG-6001 and the LG-6002 use a two-point system to inspect thread lead for straight and tapered threads. The LG-6002 inspects both external and internal threads, while the LG-6001 inspects external threads. The two point system allows for a sweeping action to obtain the measurement. Both gages are available with higher resolution indicators. The Part Number is Gagemaker LG-5003-L

Specification
Features
Catalog

Specifications

Details

Brand

Gagemaker

No. of Contact Points

Range

½" – 4" (0 mm – 101.6 mm)

Type

External/Internal

Min Bore

1.500"

Indicator Travel

0.100"

Resolution

0.0005"

Contact Point Spacing

0.167"

Gagemaker LG-5003-L, Load to load 3-point external/internal lead gage, 0.0005" Resolution, ½” – 4” (0 mm – 101.6 mm) Thread Length. Saudi Arabia
