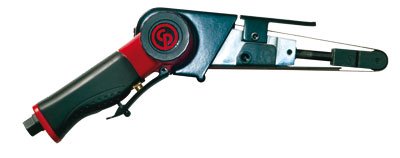

Chicago Pneumatic CP9780 | Pneumatic Belt Sander | 20 x 520 mm belt, 20,000 rpm, 380 W
The Chicago Pneumatic CP9780 is a pneumatic belt sander taking 20 x 520 mm belts, with 20,000 rpm free speed and 380 W of power. The CP9780 is 380 mm long and weighs 1.5 kg.
- Easy handling with large material removal
- Suited to paint removal, smoothing and rust removal in limited spaces; sound pressure 90.5 dB(A)
- 1/4 in air inlet, minimum hose size 10 mm and 14.1 l/s air consumption under load
- Declared vibration <2.5 m/s², sound pressure 90.5 dB(A) and sound power 101.5 dB(A); 20,000 rpm free speed
- Specifications
- Features
| Part Number | CP9780 |
| Brand | Chicago Pneumatic |
| Product Number | 6151939780 |
| Free speed | 20,000 rpm |
| Power | 380 W |
| Belt size | 20 x 520 mm |
| Air inlet thread | 1/4 in |
| Air consumption (under load) | 14.1 l/s |
| Min. hose size | 10 mm |
| Length | 380 mm |
| Net weight | 1.5 kg |
| Vibration | <2.5 m/s² |
| Sound pressure | 90.5 dB(A) |
| Sound power | 101.5 dB(A) |
- Quick-change belt replacement
- Rubber molded grip
- Adjustable sanding arm
- 3/4" (20 mm) capacity
- Handle exhaust and swivel air inlet
Related Products
Chicago Pneumatic CP9779 | Pneumatic Belt Sander | 10 x 330 mm belt, 22,000 rpm, 260 W
Chicago Pneumatic CP9779 | Pneumatic Belt Sander | 10 x 330 mm belt, 22,000 rpm, 260 W

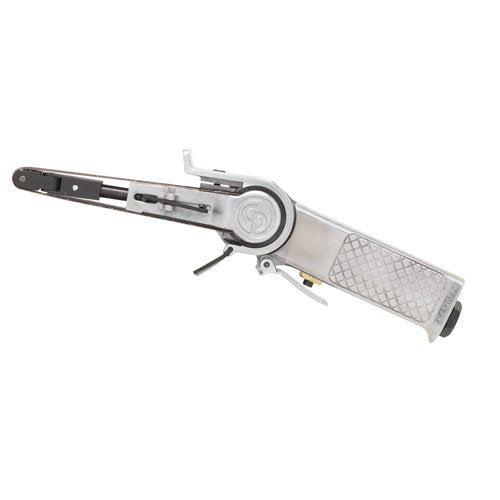

Chicago Pneumatic CP858 | Pneumatic Belt Sander | 10 x 330 mm belt, 18,000 rpm, 300 W
Chicago Pneumatic CP858 | Pneumatic Belt Sander | 10 x 330 mm belt, 18,000 rpm, 300 W

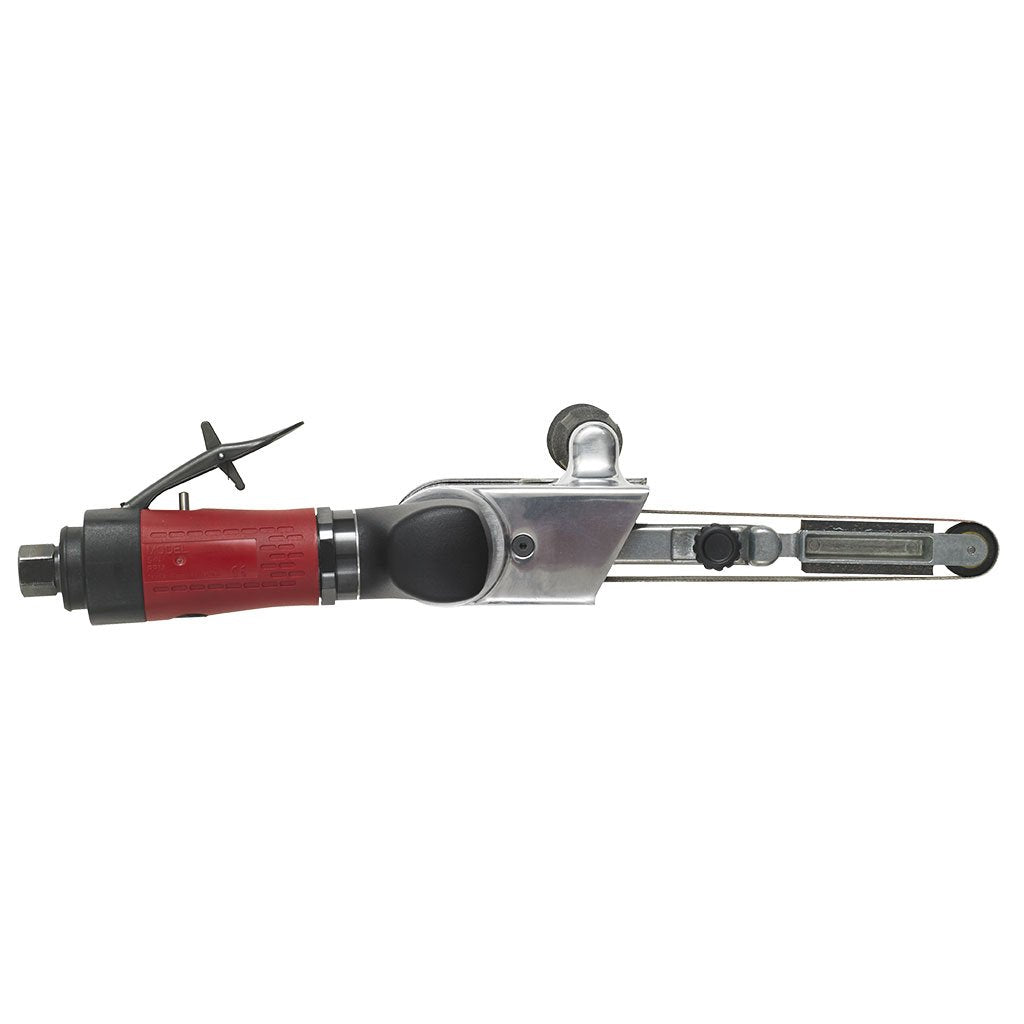

Chicago Pneumatic CP5080-3260H19 | Pneumatic Belt Sander | 13-25 x 480 mm belt, 300 W
Chicago Pneumatic CP5080-3260H19 | Pneumatic Belt Sander | 13-25 x 480 mm belt, 300 W

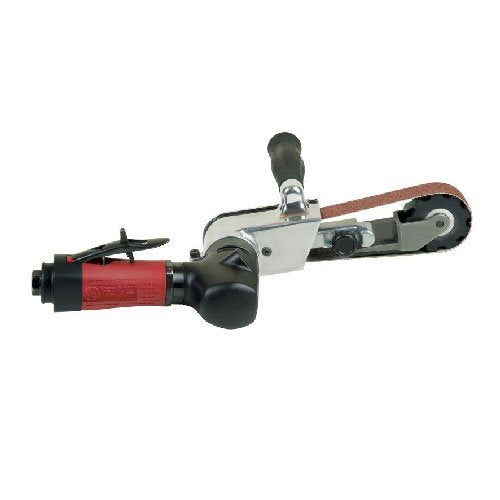

Chicago Pneumatic CP5080-5220H18 | Pneumatic Belt Sander | 25 x 457 mm belt, 22,000 rpm, 560 W
Chicago Pneumatic CP5080-5220H18 | Pneumatic Belt Sander | 25 x 457 mm belt, 22,000 rpm, 560 W

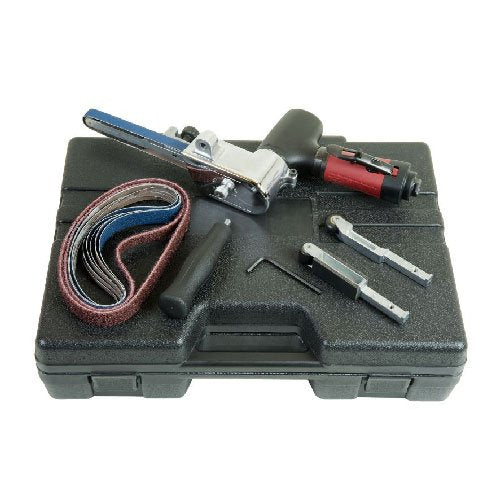

Chicago Pneumatic CP5080-4200H18K | Pneumatic Belt Sander | 13–19 x 457 mm belt, 20,000 rpm, 400 W
Chicago Pneumatic CP5080-4200H18K | Pneumatic Belt Sander | 13–19 x 457 mm belt, 20,000 rpm, 400 W

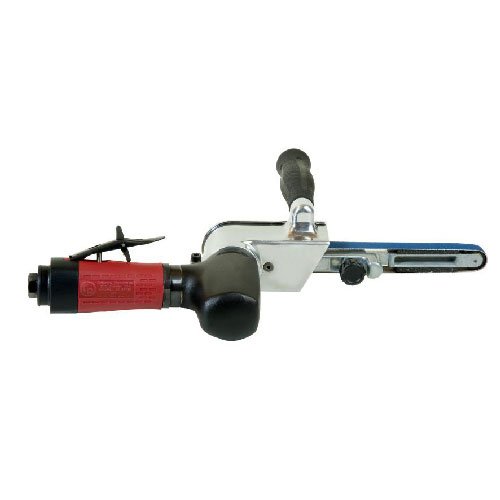

Chicago Pneumatic CP5080-4200H18 | Pneumatic Belt Sander | 13 x 457 mm belt, 400 W
Chicago Pneumatic CP5080-4200H18 | Pneumatic Belt Sander | 13 x 457 mm belt, 400 W

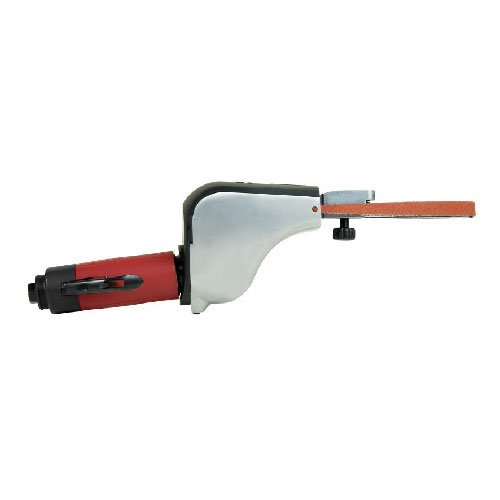

Chicago Pneumatic CP5080-4200D24 | Pneumatic Belt Sander | 13 x 610 mm belt, 400 W
