Catching Corrosion Early: How Ultrasonic Thickness Gauges Work in Saudi Arabia
An ultrasonic thickness gauge finds metal loss by firing a sound pulse through a material and timing how long it takes to bounce back from the far wall. Tracked over time at the same measurement point, that single number reveals corrosion or erosion well before a wall gets dangerously thin — which is exactly why it’s standard equipment across Saudi Arabia’s oil, gas, and manufacturing sectors.

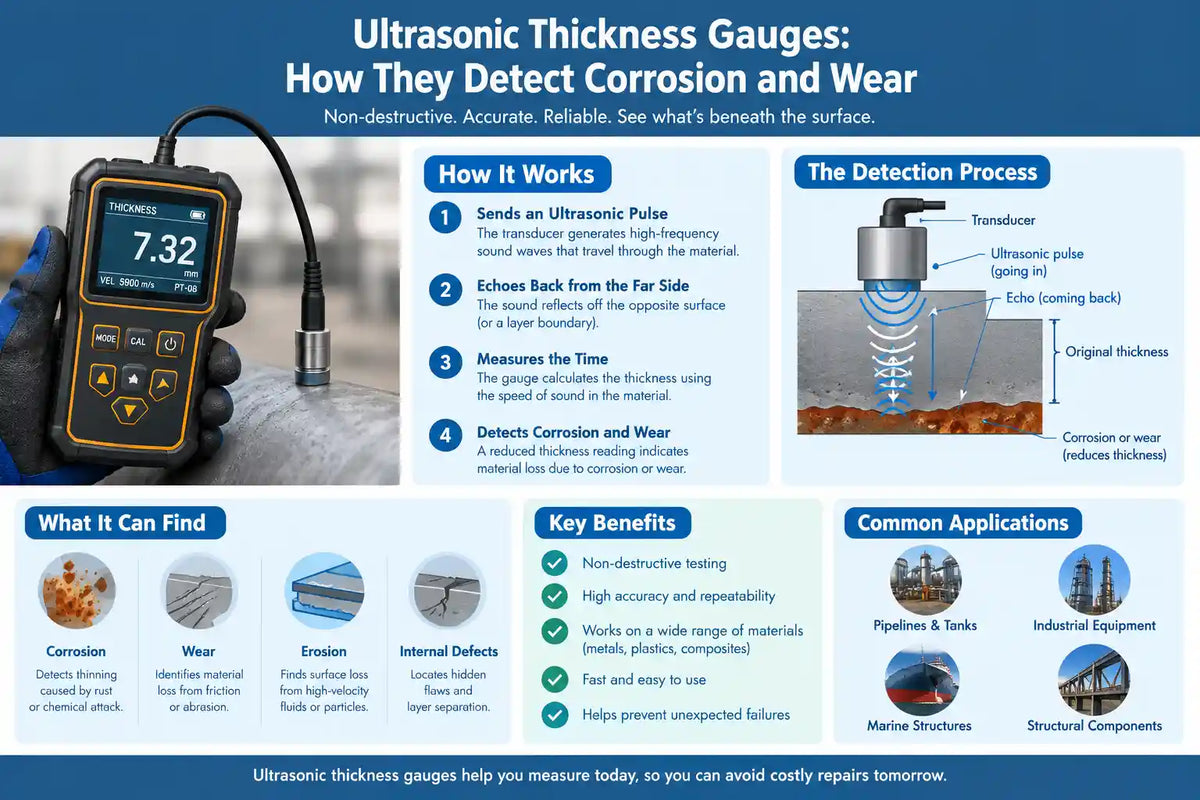

The Working Principle Behind Ultrasonic Thickness Measurement
An ultrasonic thickness gauge relies on sound traveling at a predictable, known speed through a given material.
1. A transducer sends a high-frequency pulse — usually 5 MHz — into the material through a couplant gel.
2. That pulse travels through and reflects back off the material’s far wall or an internal boundary.
3. The gauge times exactly how long the echo takes to return.
4. Knowing the material’s sound velocity, it converts that travel time directly into a thickness value.
Because this calculation depends entirely on sound velocity for the specific material, the gauge needs the correct material setting selected — get that wrong, and the reading will be off even if the instrument itself is functioning perfectly.
Why Corrosion Inspection Relies So Heavily on This Technology
An ultrasonic thickness gauge for corrosion inspection catches metal loss that typically can’t be seen from outside the equipment.
• Baseline recording — logging the original wall thickness of new equipment for comparison down the line.
• Ongoing monitoring — repeated readings at the same grid points reveal how fast corrosion is progressing.
• Localized thinning detection — scanning across a surface picks up pitting or uneven wall loss a single spot-check would miss entirely.
• Remaining-life estimates — combining current thickness, the original baseline, and the calculated corrosion rate to judge how much service life remains.
Corrosion very often starts on the inside of a pipe or tank, completely hidden from view — which makes ultrasonic measurement frequently the only practical way to catch it before it causes a failure.
Conducting Ultrasonic Thickness Testing on Pipes the Right Way
Pipe inspection using ultrasonic thickness testing follows a structured grid pattern rather than scattered spot checks, since corrosion rarely spreads evenly.
1. Set up a measurement grid — typically a series of circumferential and longitudinal Corrosion Monitoring Locations (CMLs) marked directly on the pipe.
2. Prep the surface — clear off paint, rust, or scale at each point so the reading comes through clean.
3. Apply couplant and measure at each marked grid point, recording the exact location for future comparison.
4. Track against baseline and prior readings to calculate corrosion rate and catch any acceleration in thinning.
Inspection teams typically prioritize known high-risk zones first — elbows, tees, and sections just downstream of flow restrictions, where erosion-corrosion tends to concentrate hardest.
How Accurate Is an Ultrasonic Thickness Gauge?
Ultrasonic thickness gauge accuracy depends on the instrument quality and the application, but industrial-grade units deliver strong precision across a genuinely useful range.
• Standard dual-element gauges, like the DeFelsko UTG CA1, typically cover 0.040” to 5.000” (roughly 1mm to 125mm) with accuracy around ±0.001” (±0.025mm) under good conditions.
• Multiple-echo models push the minimum measurable thickness lower, useful where single-echo accuracy starts to degrade on thin materials.
• Real accuracy depends just as much on probe contact quality, correct velocity settings, and surface condition — a pitted or rough surface undermines reliability no matter how good the gauge itself is.
Ultrasonic Thickness Gauge vs Caliper: Which One Actually Fits the Job?
The ultrasonic thickness gauge vs caliper question really comes down to access — specifically, whether you can physically reach both sides of what you’re measuring.
• Calipers and micrometers need contact on both surfaces, which works fine for a flat plate edge but is simply impossible for a sealed pipe or tank wall.
• Ultrasonic thickness gauges measure from a single side, making them the only workable option for pipes, pressure vessels, and tanks that stay in service.
• For accessible flat stock reachable from both sides, a caliper or micrometer is often quicker and skips the need for coupling gel or velocity calibration altogether.
For nearly every corrosion-monitoring scenario on live, in-service equipment, ultrasonic measurement is the only realistic method available.
Choosing the Right UTG Probe Type for the Surface Condition
UTG probe selection hinges on surface condition and the minimum thickness that needs measuring.
• Single-element probes — reliable on smooth, clean surfaces with reasonable remaining thickness.
• Dual-element probes — use separate send and receive crystals, which handles corroded, pitted, or rough surfaces far better than single-element designs.
• Delay line probes — insert a buffer between the crystal and the material, useful for thin or high-temperature surfaces.
• High-temperature probes — built for sustained contact with hot surfaces, essential for in-service piping that can’t be taken offline for inspection.
Picking the wrong probe type for a corroded or pitted surface is one of the most common reasons for unreliable field readings.
Why Oil and Gas Operations in KSA Depend on Thickness Monitoring
An ultrasonic thickness gauge for oil and gas KSA facilities is essential equipment precisely because so much critical infrastructure can’t be visually inspected from inside while it’s running.
• Pipelines, pressure vessels, and storage tanks all require ongoing thickness monitoring as part of asset integrity management programs.
• Erosion-corrosion at bends and flow restrictions can thin walls faster than general corrosion, which is why these locations get prioritized in a UTG monitoring plan.
• Regular thickness surveys feed directly into fitness-for-service assessments that decide whether equipment can keep running safely.
Keeping Corrosion Monitoring With UTG Accurate Over Time
Corrosion monitoring with UTG is only as reliable as the gauge itself, so calibration is just as important as technique.
• Check calibration against a stepped calibration block at the start of every inspection session, not just annually.
• Full instrument calibration, traceable to recognized standards, is typically carried out every 12 months for gauges in regular field use.
• A gauge producing inconsistent readings on a known calibration block needs servicing immediately, not continued use.
General Tech Services supplies genuine ultrasonic thickness gauges across Saudi Arabia from brands including DeFelsko and REED Instruments, backed by over 25 years of engineering experience across the GCC.
Choosing an Ultrasonic Thickness Gauge for Your Saudi Arabia Facility
Choosing an ultrasonic thickness gauge for Saudi Arabia operations means weighing materials, surface conditions, and documentation requirements together.
1. Measurement range — make sure the gauge spans both the thinnest and thickest materials you’ll actually inspect.
2. Probe compatibility — dual-element or high-temperature probes for corroded or hot surfaces.
3. Data logging — simplifies documentation for asset integrity compliance.
4. Material library — pre-set velocities speed up setup across different material types.
5. Traceability — confirm the gauge and its calibration trace back to recognized standards for audit purposes.
FAQ: Ultrasonic Thickness Gauges
Q: Can these gauges measure through paint or coating? Some models compensate for coating thickness, but accuracy is generally better with the coating removed at the measurement point, particularly for corrosion monitoring.
Q: Why is couplant gel necessary for a reading? It eliminates the air gap between probe and surface, since ultrasonic sound doesn’t transmit effectively through air.
Q: What’s the thinnest material an ultrasonic thickness gauge can measure? This depends on gauge and probe, but multiple-echo models can often get down to around 0.1mm, while standard single-echo models typically start near 1mm.
Q: How is a corrosion rate actually calculated from thickness readings? By comparing the current reading against a documented baseline or earlier reading, divided by the time elapsed between the two measurements.
Q: Does a rough or pitted surface affect reading reliability? Yes — it scatters the sound pulse and can produce unreliable results, which is why dual-element probes are often the better choice on corroded surfaces.
