Pressure Transmitters Explained: How They Work and Where They're Used in Saudi Arabia
A pressure transmitter is a device that senses pressure and converts it into a standardized electrical signal — most commonly 4-20mA — that a control system can read continuously. It's the instrument that turns a physical pressure reading into data a PLC, SCADA system, or process controller can act on in real time, a core requirement across Saudi Arabia's oil, gas, and petrochemical facilities.
How Does a Pressure Transmitter Work?

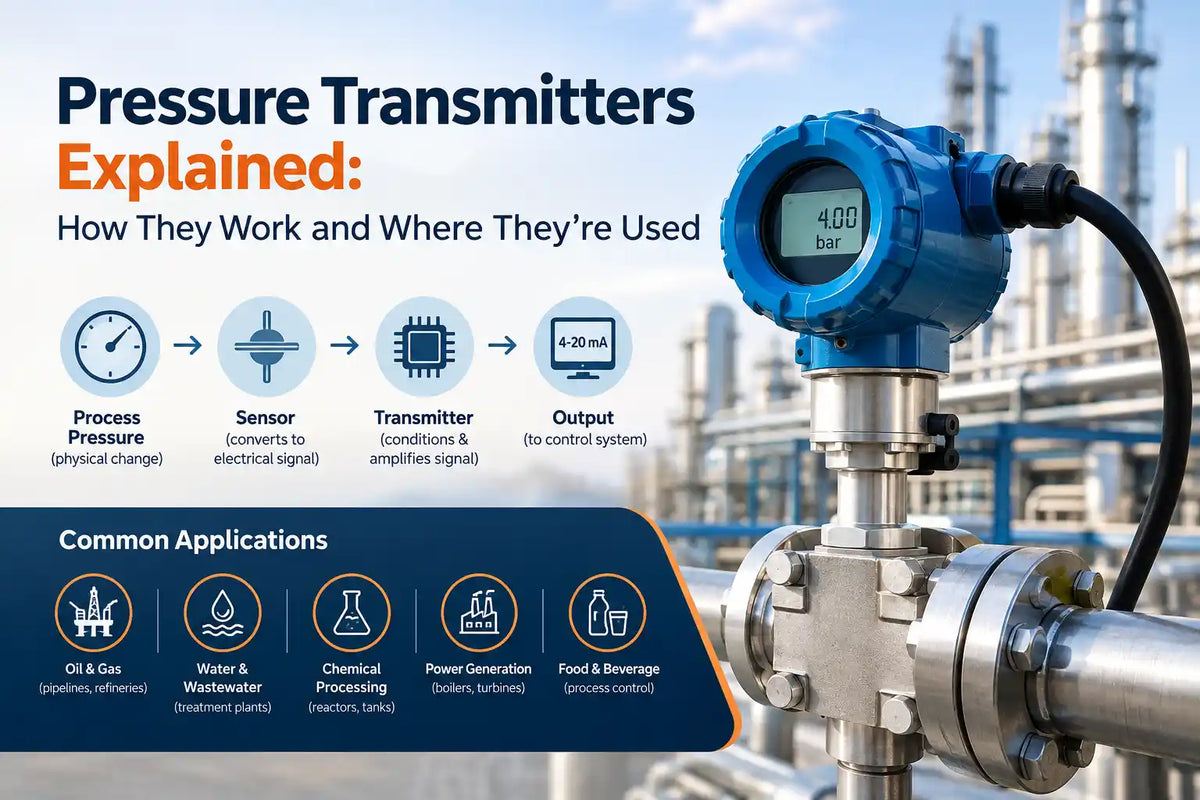

A pressure transmitter works in two stages: sensing the pressure, then converting that reading into an electrical signal.
1. Sensing element: a diaphragm or strain gauge deflects slightly under applied pressure.
2. Signal conditioning: internal electronics amplify and linearize the raw sensor signal.
3. Output stage: the conditioned signal is transmitted as a standardized output, most commonly 4-20mA, though 0-10V and digital protocols (HART, Modbus) are also common.
Because the output is standardized, a pressure transmitter can be swapped or calibrated without reconfiguring the entire control loop — only the transmitter itself needs attention.
What Are the Main Types of Pressure Transmitters?
Pressure transmitters are generally categorized by what they measure relative to.
• Gauge pressure transmitters — measure pressure relative to atmospheric pressure; the most common type in general industrial use.
• Absolute pressure transmitters — measure pressure relative to a perfect vacuum, used where atmospheric variation would skew readings.
• Differential pressure transmitters — measure the difference between two pressure points, commonly used for flow measurement and filter monitoring.
• Sealed/gauge-reference transmitters — reference a sealed chamber instead of open atmosphere, useful in submerged or sealed-system applications.
Some transmitters, like flush-mount multifunction models, are also built for specific mounting or hygienic requirements rather than a different sensing principle.
Pressure Transmitter vs Pressure Transducer: What's the Difference?
A pressure transducer is the sensing component; a pressure transmitter is the transducer plus signal conditioning electronics that output a standardized, long-distance-capable signal.
• A transducer alone typically outputs a low-level signal (millivolts) that degrades over long cable runs.
• A transmitter amplifies and converts that signal into 4-20mA or similar, which stays accurate over hundreds of meters of cable — important across the large pipeline and process networks common in Saudi Arabia's oil and gas sector.
• In everyday industrial language, the terms are sometimes used interchangeably, but technically a transmitter always includes the transducer, not the other way around.
If a device needs to send a reliable signal to a control room a significant distance away, it needs to be a transmitter, not a bare transducer.
What Is a 4-20mA Pressure Transmitter and Why Is It So Common?
A 4-20mA pressure transmitter outputs a current signal proportional to the measured pressure, where 4mA represents the minimum of the range and 20mA represents the maximum.
• Fault detection built in: a reading of 0mA immediately signals a wire break or power loss, since a live signal never drops below 4mA.
• Noise resistance: current signals resist electrical noise better than voltage signals over long cable runs.
• Industry standard: 4-20mA is compatible with the vast majority of PLCs, DCS systems, and process controllers used across oil & gas and manufacturing — including plants across Dammam, Jubail, and Riyadh's industrial zones.
This combination of built-in fault detection and broad compatibility is why 4-20mA remains the default output for industrial pressure transmitters decades after its introduction.
What Are the Main Pressure Transmitter Applications in Industry?
Pressure transmitters show up anywhere a process needs continuous, automated pressure monitoring rather than a manual gauge check.
4. Oil & gas: pipeline pressure monitoring, wellhead pressure, and separator vessel control.
5. Water treatment: pump station pressure control and filter differential pressure monitoring.
6. HVAC systems: duct static pressure and chilled water loop monitoring.
7. Manufacturing: hydraulic and pneumatic system pressure control on production equipment.
8. Process automation: tank level inference via hydrostatic pressure measurement.
Any application where pressure needs to feed into an automated control loop — rather than just be read by a technician — calls for a transmitter over a standalone gauge.
How Do You Choose the Right Pressure Transmitter?
Selecting the wrong transmitter range or output type is one of the most common instrumentation mistakes in the field.
• Pressure range: select a transmitter rated for roughly 1.5x the maximum expected operating pressure, not the exact expected value.
• Output signal: confirm the transmitter's output (4-20mA, 0-10V, HART) matches what the control system can read.
• Process connection: thread type and wetted material must be compatible with the process media, especially for corrosive or high-purity applications.
• Accuracy class: typical industrial transmitters offer 0.5% accuracy, though some applications require tighter tolerances.
• Environmental rating: IP65/IP67 or higher protection is standard for outdoor or washdown-prone installations — a practical necessity given Saudi Arabia's dust and extreme heat conditions.
Why Does Calibration Matter for Pressure Transmitters?
A pressure transmitter's accuracy degrades over time due to sensor drift, temperature cycling, and mechanical stress, so periodic calibration keeps readings trustworthy.
• Most industrial pressure transmitters are recalibrated on a 12-month cycle as a default, though critical safety loops may require shorter intervals.
• Calibration against a traceable reference standard confirms the transmitter's output still matches its rated accuracy across its full range.
• Uncalibrated transmitters in safety-critical loops — like pressure relief systems — can silently drift out of tolerance, creating a real safety risk.
General Tech Services supplies pressure transmitters from brands including Winters and Sauermann, and offers ISO/IEC 17025 accredited calibration services, backed by over 30 years of engineering experience serving clients across Saudi Arabia's oil, gas, and industrial sectors.
FAQ: Pressure Transmitters
Q: Can a pressure transmitter measure both liquids and gases? Yes — most industrial pressure transmitters are rated for both, though the wetted material and process connection need to suit the specific media.
Q: What accuracy should I expect from an industrial pressure transmitter? Standard industrial units commonly offer 0.5% full-scale accuracy, with higher-precision models available for critical applications.
Q: Is a differential pressure transmitter the same as a regular pressure transmitter? No — a differential pressure transmitter measures the difference between two pressure points, while a standard transmitter measures pressure at a single point relative to atmosphere or vacuum.
Q: How do I know if a pressure transmitter has failed? A 4-20mA loop reading of 0mA (below the minimum 4mA) is a clear sign of a wiring fault or transmitter failure, since a functioning loop never reads below 4mA.
Q: Do pressure transmitters need special wiring? Most use standard shielded twisted-pair cable for 4-20mA signals, with shielding grounded at one end to reduce electrical noise interference.
