Getting VFD Sizing Right for Your Motor in Saudi Arabia
The core of VFD sizing is matching the drive’s rated output current to the motor’s full-load amps, then adjusting that figure for voltage, altitude, ambient heat, and other site-specific derating factors. Skip any of these steps and you’re left with nuisance trips, early drive failure, or a motor running without proper protection.
Why Getting VFD Sizing Right Actually Matters
A poorly sized VFD creates problems in one of two directions, and neither is cheap to fix after installation.
• An undersized drive overheats, trips on overcurrent, and wears out well ahead of schedule under perfectly normal operating load.
• An oversized drive costs more than necessary and can dull control sensitivity at low-speed, low-load conditions.
• Getting the pairing right also affects energy efficiency, since a mismatched drive-motor combination rarely runs near its most efficient operating point.

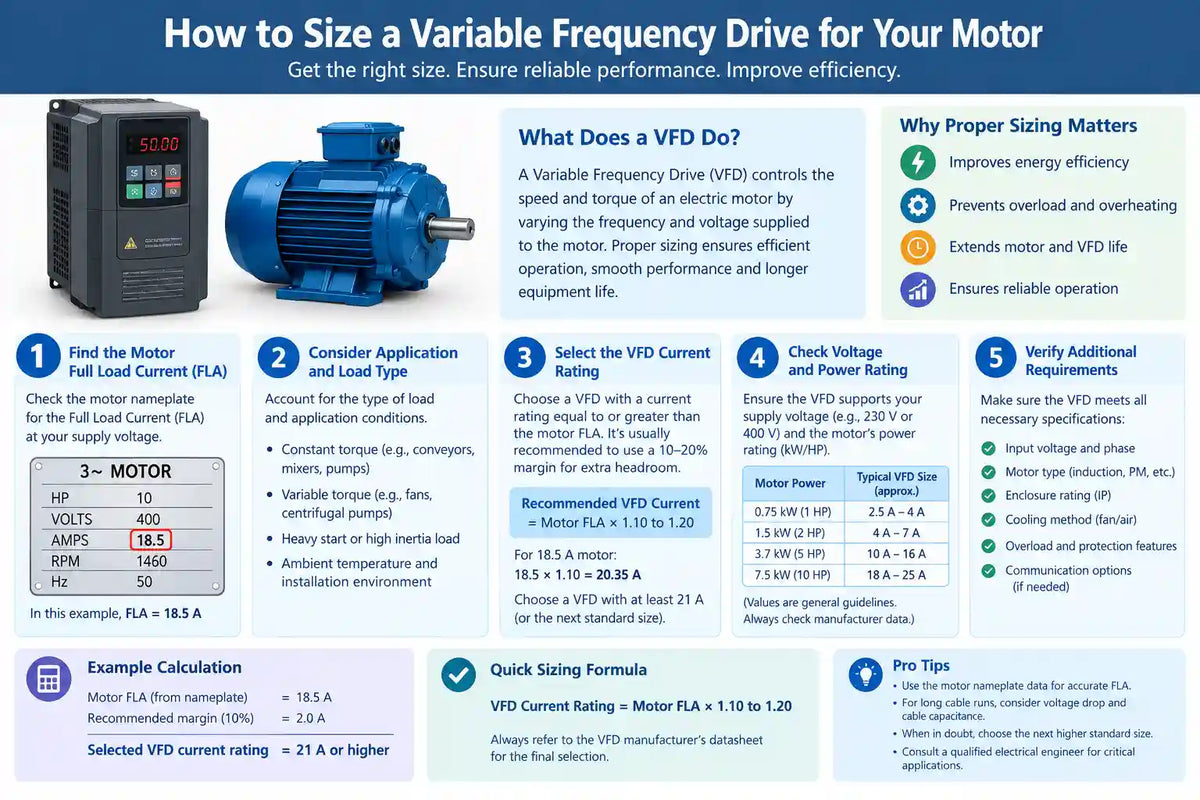

Working Through the VFD Sizing Calculation
A proper VFD sizing calculation starts from the motor’s full-load amperage (FLA) rather than its horsepower label, since current is the figure that actually determines correct sizing.
1. Pull the motor’s full-load amps (FLA) off its nameplate — this is the continuous current figure the drive has to handle.
2. Match the VFD’s rated output current to meet or exceed that FLA figure, not simply its horsepower rating.
3. Confirm the voltage class — input and output voltage on the drive must align precisely with the motor and incoming supply.
4. Factor in any derating for altitude, ambient heat, or switching frequency before locking in the final selection.
Horsepower charts are a handy starting point, but the motor’s actual nameplate current should always be the deciding factor in the final sizing decision.
Matching VFD to Motor Horsepower the Right Way
Matching VFD to motor horsepower is the quick-reference version of sizing, but it shouldn’t replace a proper current check.
• VFD horsepower ratings generally assume a standard 4-pole induction motor running at rated voltage under typical conditions.
• A motor that’s more efficient, built with a different pole count, or running at non-standard voltage can draw current that doesn’t match the horsepower chart’s assumption.
• Always verify the VFD manufacturer’s rated output current against the specific motor’s nameplate FLA, particularly for motors outside standard NEMA/IEC designs.
Relying on a straight horsepower-to-horsepower match without checking actual current draw is a common way to end up with an undersized drive.
VFD Sizing for Pumps and Fans: A Different Load Profile
VFD sizing for pumps and fans follows a load profile that behaves quite differently from constant-torque applications like conveyors, which changes how the sizing should be approached.
• Centrifugal pumps and fans are variable-torque loads — torque demand drops sharply at lower speeds, following the affinity laws.
• This generally lets VFDs for pumps and fans be sized closer to the motor’s exact rating, without the extra starting-torque margin constant-torque loads require.
• That said, pumps with high static head or fans working against high static pressure may still demand full starting torque, so the specific load curve should always be checked rather than assumed.
Adding extra sizing margin “just to be safe” on a standard pump or fan usually just adds cost without delivering any real performance benefit.
Oversized vs Undersized VFD: What Each Mistake Actually Costs You
The oversized vs undersized VFD trade-off plays out differently depending on which direction the sizing error goes.
• Undersized VFD: overheats under routine load, trips repeatedly on overcurrent faults, and suffers accelerated wear from running near or past its rated limits.
• Oversized VFD: a larger upfront cost, reduced current-sensing resolution at low loads, and less precise protective function tuning for the actual connected motor.
• Correctly sized VFD: operates within its rated thermal and electrical envelope while still providing accurate, current-based motor protection.
A drive sized one frame size above the calculated minimum is often a reasonable margin; several sizes larger usually points to a sizing mistake rather than a deliberate safety buffer.
VFD Derating Factors Specific to Saudi Arabia’s Operating Conditions
VFD derating factors reduce a drive’s usable output rating below its nameplate value under certain real-world conditions — and Saudi Arabia’s climate makes some of these especially relevant.
• Altitude — most VFDs need derating above roughly 1,000 meters elevation, since thinner air reduces cooling efficiency.
• Ambient temperature — running above the drive’s rated temperature (commonly 40°C) typically calls for output current derating, a real factor during Saudi summer conditions.
• Switching frequency — higher PWM carrier frequencies, used to reduce motor noise, often require derating due to increased switching losses.
• Combined heat and enclosure conditions — in high-ambient-temperature Saudi installations, panel ventilation and enclosure cooling become just as important as the drive’s base nameplate rating.
Skipping derating is a frequent reason a drive that looks correctly sized on paper still overheats or trips once installed in the field.
A Step-by-Step Checklist for Sizing a VFD Correctly
Pulling the above together into a practical sequence makes the sizing process far less likely to go wrong.
1. Record the motor’s FLA, voltage, and pole count straight from its nameplate.
2. Identify the load type — constant torque (conveyors, compressors) or variable torque (pumps, fans).
3. Select a VFD rated for output current equal to or above the motor’s FLA.
4. Review installation conditions — altitude, ambient temperature, and enclosure ventilation.
5. Apply any necessary derating and confirm the selected drive still meets the motor’s current requirement afterward.
6. Double-check voltage class and control type (open-loop vs closed-loop) against the application’s actual needs.
Why Professional Support for VFD Sizing Pays Off
Incorrect sizing remains one of the most common causes of premature drive failure and unplanned downtime across Saudi industrial facilities.
• A drive tripping repeatedly under ordinary load often gets blamed on a “faulty unit” when the underlying issue is sizing done wrong at installation.
• Correct sizing weighs not just nameplate horsepower but real current draw, load type, and local environmental conditions.
• General Tech Services supports VFD selection and sizing from its Dammam office, drawing on more than 25 years of engineering experience with industrial motor and drive systems across the GCC.
FAQ: Sizing a Variable Frequency Drive
Q: Is it enough to size a VFD by horsepower alone? It’s a reasonable starting point, but the motor’s actual full-load amperage should always be checked against the drive’s rated output current before the selection is finalized.
Q: Does a pump need a larger VFD than a conveyor at the same horsepower? Generally no — pumps and fans are variable-torque loads needing less starting-torque margin than constant-torque loads like conveyors, so sizing can often be tighter.
Q: How much margin is reasonable when sizing a VFD? A small buffer, such as one frame size above the calculated minimum, is standard practice; going several sizes larger usually signals a sizing error rather than genuine safety margin.
Q: How significant is temperature derating in a hot climate like Saudi Arabia’s? Quite significant — running above the drive’s rated temperature (commonly 40°C) typically requires meaningful output current derating in high-ambient-heat industrial or outdoor environments.
Q: Should I size a VFD bigger now in case the motor gets upgraded later? Only if the future upgrade is genuinely planned — sizing for a hypothetical future load instead of the current motor adds cost without any immediate benefit.
