A Beginner’s Guide to Reading a Micrometer Correctly in Saudi Arabia

Reading a micrometer comes down to adding three scale values together — the sleeve’s main scale, its half-millimeter line where visible, and the thimble scale — to arrive at a measurement accurate to 0.01mm. The method is simple once broken down, even though it takes a bit of hands-on practice to do quickly and confidently.

Getting Familiar with the Parts of a Micrometer

Knowing what each part does makes the reading process much easier to follow, since two specific parts work together to produce the final number.

•           Frame — the rigid C-shaped body holding the whole instrument steady during measurement.

•           Anvil and spindle — the two contact faces; the anvil stays fixed while the spindle moves to close on the object.

•           Sleeve (barrel) — carries the fixed main scale lines.

•           Thimble — the rotating component with fine graduations that line up against the sleeve’s reference mark.

•           Ratchet stop — ensures consistent, controlled pressure when closing the micrometer, so results don’t vary with how hard someone turns it.

Micrometers typically cover a 25mm range per unit, so selecting the correct size for the part being measured matters as much as reading it correctly.

How to Read a Micrometer in mm, Step by Step

For a metric micrometer, the millimeter reading is built from up to three separate scale values added together.

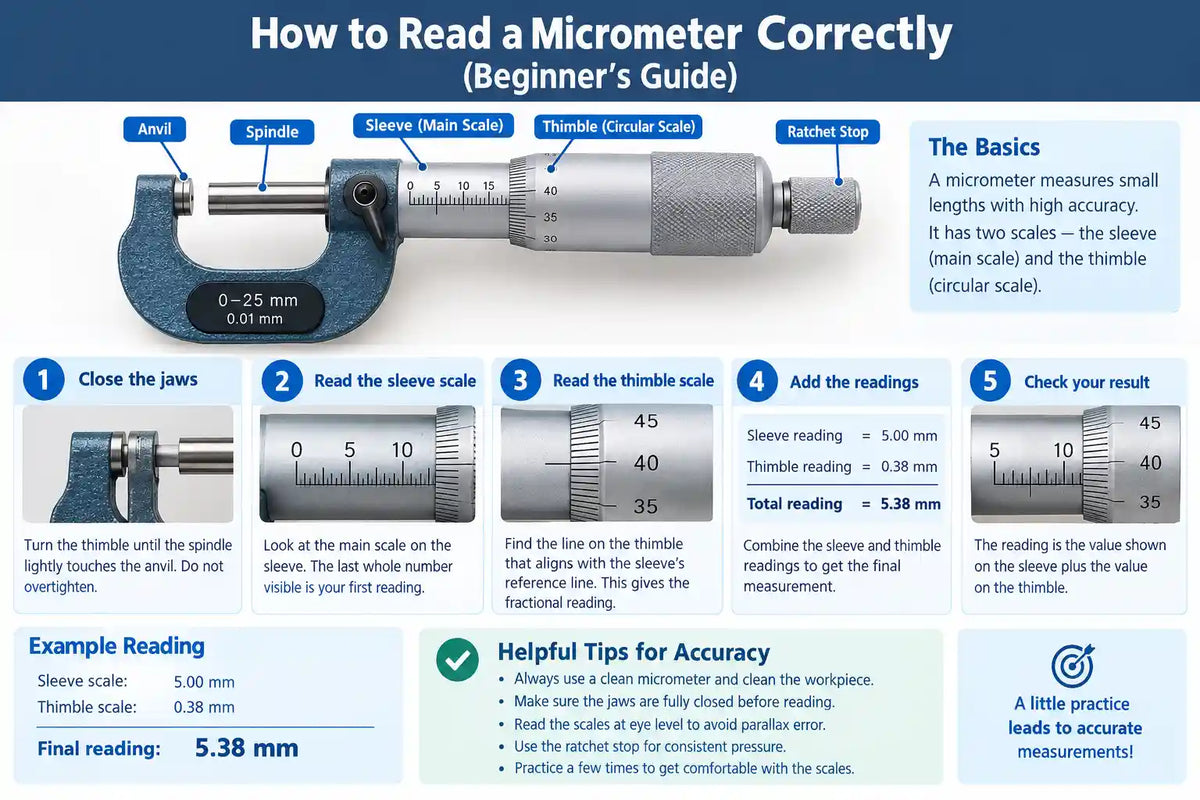

1.         Read the main sleeve scale — each visible line represents 1mm.

2.         Look for a half-millimeter line — add 0.5mm to the total if this line is showing.

3.         Read the thimble scale — note which thimble line aligns with the sleeve’s horizontal reference line; each one represents 0.01mm.

4.         Sum the three figures — sleeve main scale, plus 0.5mm if applicable, plus the thimble reading.

As an example: a sleeve reading of 5mm, with the half-millimeter line visible, plus a thimble reading of 0.27mm gives a total of 5.77mm.

A Practical Sequence for Reading Any Micrometer

Regardless of the exact unit system, the overall reading process always follows the same logic.

•           First, close the micrometer on the part using the ratchet stop rather than the thimble, to keep pressure consistent.

•           Second, note the sleeve’s main scale reading.

•           Third, find the exact thimble line aligned with the sleeve reference mark.

•           Fourth, add the sleeve and thimble values together.

•           Fifth, take the reading a second time to confirm consistency before recording it.

Zeroing a Micrometer Before You Start Measuring

A micrometer should read exactly 0.00 when fully closed with nothing between the anvil and spindle — checking this first prevents every subsequent reading from carrying the same error.

1.         Close the micrometer gently with the ratchet stop until it clicks.

2.         Confirm the thimble’s zero line aligns precisely with the sleeve’s reference line.

3.         If it doesn’t line up, use the adjustment tool to rotate the sleeve into correct alignment.

4.         Recheck after adjusting, repeating if the alignment still isn’t exact.

Micrometer Reading for Beginners: Common Mistakes to Avoid

Most early mistakes come down to a handful of recurring issues rather than a fundamental misunderstanding of the method.

•           Missing the half-millimeter line — easy to overlook on a metric scale, and it throws the result off by exactly 0.5mm.

•           Reading the wrong thimble line — picking a line adjacent to the correct one rather than the one precisely aligned.

•           Tightening with the thimble instead of the ratchet — this compresses the part slightly and skews the reading.

•           Ignoring temperature effects — prolonged handling by bare hands can introduce thermal expansion error on tight-tolerance work.

•           Skipping the zero check — carries forward a fixed error into every measurement taken afterward.

Digital vs Analog Micrometer Reading: What’s Actually Different

Digital micrometers remove the manual scale-reading step entirely, showing the measurement directly on an LCD screen.

•           There’s no sleeve-and-thimble addition required — the number simply appears on the display.

•           Mitutoyo’s Absolute (ABS) digital technology retains its zero position even after the unit is powered off, eliminating a common source of digital measurement error.

•           Standard digital micrometers typically offer accuracy around ±0.001mm, matching or exceeding what a carefully trained technician achieves reading an analog scale.

Even with digital tools widely available, many QA training programs in Saudi Arabia still start new staff on analog micrometers, since the scale-reading process builds a more solid grasp of measurement fundamentals.

Why Micrometer Accuracy and Precision Matter for QA Work

A part’s pass or fail result against its tolerance depends entirely on the accuracy and precision of the micrometer used to check it.

•           Standard mechanical micrometers typically hold accuracy around ±0.002mm to ±0.004mm across their range.

•           High-accuracy digital models can reach tighter tolerances, suited to precision machining and calibration applications.

•           None of this matters without proper use — correct zeroing, consistent ratchet-stop pressure, and a regular calibration schedule (commonly every 12 months) are what keep accuracy claims meaningful in practice.

General Tech Services has supplied genuine Mitutoyo micrometers across Saudi Arabia and the wider GCC since 1998, backed by calibration support for dimensional instruments.

FAQ: Reading a Micrometer

Q: Why do my readings keep coming out slightly different on the same part? Inconsistent closing pressure is the most likely cause — always use the ratchet stop, never the thimble directly, to apply the same force every time.

Q: What does one full rotation of the thimble represent on a metric micrometer? A full rotation typically moves the spindle 0.5mm, which is exactly why the sleeve includes a half-millimeter line that the thimble reveals with each turn.

Q: Is it realistic for a beginner to get accurate readings quickly? With a methodical approach — zero first, read the sleeve, then the thimble — reasonably accurate readings come fairly quickly, though speed takes more practice.

Q: How often should an analog micrometer be checked for accuracy? Most industrial micrometers in regular use are checked or calibrated every 12 months, with tighter intervals for high-precision or heavily used instruments.

Q: Does a digital micrometer outperform a well-read analog one in accuracy? Not necessarily in raw mechanical terms — the real advantage of digital is removing the risk of misreading the sleeve and thimble scales manually.
